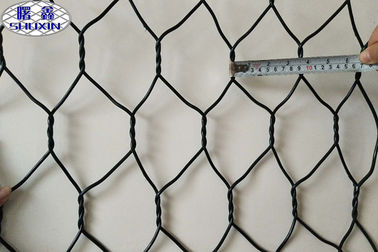

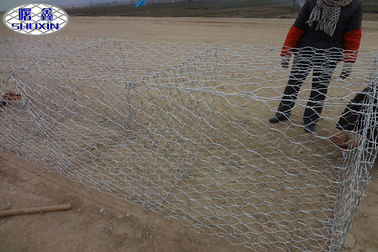

PVC Coated Woven Gabion Mesh Box Mesh Wire 2.7mm / Edge Wire 3.4mm

Certification
China Anping Shuxin Wire Mesh Manufactory Co., Ltd. certification
China Anping Shuxin Wire Mesh Manufactory Co., Ltd. certification
Customer Reviews
Product received on time. Product quality is good. costumer service is very accommodating. hassle free transaction. will not hesitate to order again next time.

—— Ventas

The quality is reliable! Thanks.Product received on time.

—— Buena

Great Seller!!!!! Working with you is very reassuring, don't worry about any quality problems.

—— Peter

I have been very happy and trustworthy suppliers for many years.

—— Sworld

I'm Online Chat Now

PVC Coated Woven Gabion Mesh Box Mesh Wire 2.7mm / Edge Wire 3.4mm

PVC Coated Woven Gabion Mesh Box Mesh Wire 2.7mm / Edge Wire 3.4mm
PVC Coated Woven Gabion Mesh Box Mesh Wire 2.7mm / Edge Wire 3.4mm PVC Coated Woven Gabion Mesh Box Mesh Wire 2.7mm / Edge Wire 3.4mm

Large Image :  PVC Coated Woven Gabion Mesh Box Mesh Wire 2.7mm / Edge Wire 3.4mm

Product Details:
Place of Origin: Heibei China
Brand Name: SHUXIN
Certification: ISO 9001
Model Number: SX-GM01
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Square Meters
Price: Negotiated
Packaging Details: Folded then in Pallet
Delivery Time: 8 Working Days After Getting The Depoist
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 Square Meters Per Day

PVC Coated Woven Gabion Mesh Box Mesh Wire 2.7mm / Edge Wire 3.4mm

Description
Material: Hot Dipped Galvanized Wire Surface Treatment: PVC Coated
Application: Slope Protection Advantages: Anti-Corrosion
Cage Size: 1*1*1M, 1*1*2M,1*1*0.5M Mesh Hole: 7*9cm,6*8cm,8*10cm,9*11cm,11*13cm
High Light:

retaining wall gabion cages

,

gabion wall baskets

Mesh Wire 2.7mm Edge Wire 3.4mm Woven Gabion Mesh Box



Mesh Wire 2.7mm Edge Wire 3.4mm Woven Gabion Mesh Box is Woven by Machine used Low carbon Steel Wire, which is High corrosion resistance, high strength,and ductile. This kind of Gabion Wire Mesh also can make into Cage called Gabion Mesh Box Cage.According to ASTM and EN Standard, The Wire Diameter can be 2.0mm-4.0mm, The T/S not less than 38 kg/M2. The Zinc Coating is Higher than 245 g/M2. The Edge Wire Diameter is thicker than Wire Mesh Diameter, The Length of Twist part is not less than 50mm, to protect Zinc Coating or PVC Coating.



Quick View of Mesh Wire 2.7mm Edge Wire 3.4mm Woven Gabion Wire Mesh Boxes:

Product Name Gabion Wire Mesh Box
Material  Q195 Low Carbon Steel Wire, Q195
Process Weave By Machine
Usage Slope Support, Foundation Pit Support
Features High Corrosion Resistance, High Strength, Ductility
Tensile Strength 38kg/m2



Production Process of  Gabion Mesh Boxes:

Raw Materials (Wire Rod) - Cold drawn / Galvanized / PVC Coated - Machine Weaving - Artificial Shear, Assembly - Product Inspection - Packaging and Transport



Specification Sheet of Mesh Wire 2.7mm Edge Wire 3.4mm Woven Gabion Mesh Box:

Wire Diameter Mesh Hole Size of Box Cage
2.2mm-4.0mm 60 * 80 mm

2M * 1M * 1M

3M * 1M * 1M

4M * 1M * 1M

2M * 1M * 0.5M

4M * 1M * 0.5M

80 * 100 mm
90 * 110 mm
110 *130 mm
120 * 150mm
180 * 220 mm
Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated, PVC Coated



Application:



Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and exchange function between water bodies and the soil beneath the slope to achieve ecological balance. Slope vegetation can increase the landscape, greening effect.



Advantages:

  • Economy, Just put the stone into the cage is okay to use.
  • It is simple to Operation, No need special skills.
  • Strong ability to resist the effects of natural damage, corrosion and weather.
  • It will not collapse with a wide range of deformation
  • It is good to Growing for Plant between the gap of Stone,together with the Environmental.
  • Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
  • It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
  • Corrosion resistance: galvanized materials are not afraid of sea water.
  • Environmental Protection material: cadmium (Cd) <10ppm, lead (Pb) <50ppm, other harmful substances such as Hg, Cr6 +, PBB, PBDE Check out, in full compliance with the environmental standards of RoSH

PVC Coated Woven Gabion Mesh Box Mesh Wire 2.7mm / Edge Wire 3.4mm 0
