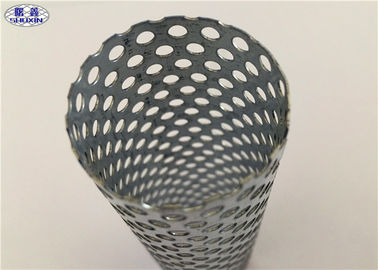

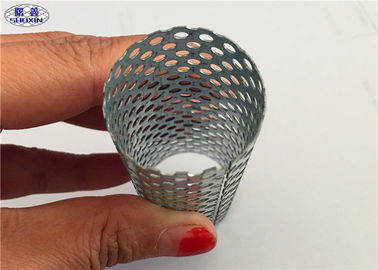

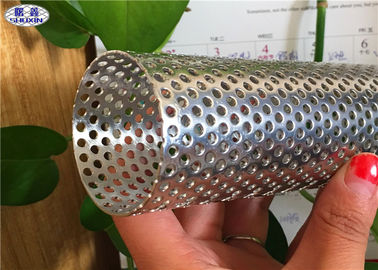

Wire Mesh Perforated Filter Tube ISO Certificated For Automobile Industry

Wire Mesh Perforated Filter Tube ISO Certificated For Automobile Industry
Wire Mesh Perforated Filter Tube ISO Certificated For Automobile Industry Wire Mesh Perforated Filter Tube ISO Certificated For Automobile Industry Wire Mesh Perforated Filter Tube ISO Certificated For Automobile Industry

Large Image :  Wire Mesh Perforated Filter Tube ISO Certificated For Automobile Industry

Product Details:
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO:9001
Model Number: SX-PFT01
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Price: Negotiated
Packaging Details: bubble bag, wooden case, bundle, bulk, etc, as per your requests
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union,Paypal

Wire Mesh Perforated Filter Tube ISO Certificated For Automobile Industry

Description
Steel Grade: 300 Series Welding Line Type: Seamless
Outer Diameter: 6-630mm Shape: Round / Square / Rectangle
Length: Customer Request Sample: Samples
Standard: ASTM, AISI, DIN, EN, GB, JIS
High Light:

perforated metal pipe

,

stainless steel wire mesh tube

Wire Mesh Promotion Filter Perforated Tubes for Automobile Industry



The Perforated Filter Tubes with cutting edge technology, which is manufactured with carbon steel or stainless steel. The main application is to control sand of the oil reservation layer, prevents the rock bits dropping off the well bore.



We can offer perforated pipe with stainless steel or carbon steel material, the max outer diameter is 630mm , the max wallthickness is 25mm, the length can be R3, the size of the round hotes is from 5mm to 25mm. Our new machine can drill any patter and any numbers holes as the customer request for water well.



The overall strength of the drilling of the base pipe and is only 2 to 3% smaller than the standard casing or tubing. Therefore, it can withstand compression deformation class have sufficient overall strength. Even if the local deformation, compression portion of the gap can not be enlarged.



Quick Details



Pipe Size

(Inch)

Hole No.

(Feet)

Size of Hole

(Inch)

Perforated Area

(Feet)

3/4" 48 3/16" 2.15
1" 54 5/16" 4.14
1-1/4" 66 5/16" 5.06
1-1/2" 78 5/16" 5.06
2-1/16" 78 5/16" 5.98
2-3/8" 90 3/8" 9.94
2-7/8" 102 3/8" 11.26
3-1/2" 126 3/8" 13.91
4" 138 3/8" 15.24
4-1/2" 150 3/8" 16.56
5" 162 3/8" 17.88
5-1/2" 174 3/8" 19.21
6-5/8" 186 3/8" 20.53
7" 222 3/8" 24.51
9-5/8" 294 3/8" 32.46

P.S.: Any size & pattern of the holes can be punched, we can do it as per your requirement.



Detail Information



1. Perforated metal pipe material

Carbon steel, Hot rolled sheet and coil, cold rolled sheet and coil, Galvanized.
Aluminum: 1060/3004 H14/5052-H32/6061-T4.
Stainless steel: 304 Stainless steel, 304L Stainless Steel, 316, 316-L
Brass, and various of nonmetal pipe.
Perforated pipe surface treatment: Anodizing, Coating, Electro-galvanizing, Hot Dip Galvanizing, Painting, Powder Coating.



2. Other perforated metal pipe produces we can do

Angle Cutting, Annealing, Bending, Bolt Holes, Circle Cutting, Cleaning Perforated,
Coiling, Corrugating, Cut to Size, DeBurring, Drawings Required, Indented Holes, Laser Cutting, Notching, Plasma Cutting, Plating, Polishing, Slitting, Stamping, Straight Cutting, Welding Decorative Perforated mesh pipe


3. The main characteristic of punching products
1.) Can spray paint or polishing
2.) Good sound-absorbing effect

3.) Easy to processing molding
4.) Super abrasion resistance
5.) A precise size



4.The application of perforated metal pipe
1). Construction, decoration equipment shell
2.) Non-slip
3). Noise barrier sound-absorbing board
4). Speakers of the heat shield
5). Mechanical screen plate etc.
We offer perforated pipe with more options and less cost. Equipped with computerized-programmable feed systems, we will expand your custom design options.



Our Perforated pipe is available in the following patterns
Round, square, oblong, triangle, slot, hex, oval, diamond and a broad variety of special shaped holes. We have tooling available for many different hole patterns and shapes. It is more economical to choose one of the available patterns, although special hole sizes and patterns can be accommodated at additional cost.

Wire Mesh Perforated Filter Tube ISO Certificated For Automobile Industry 0
