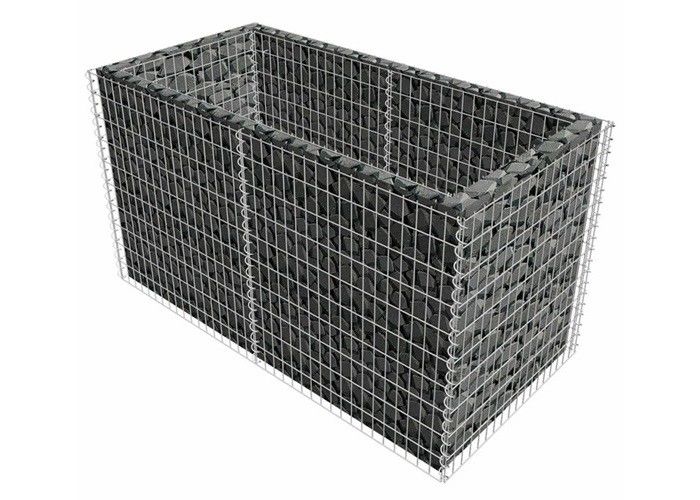

Rust Proof Galvanized Welded Wire Mesh Galfan Welded Gabion Box Easily Assembled

100*80*30 Welded Gabion Box , Gabion Stone Cage Basket Retaining Wall

Description

Welded Gabion Boxes are filled on site with hard and durable stone to form mass gravity structures.

And Welded Gabion Box is quicker and simpler to install than woven mesh gabions.

Welded gabions boxes are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures.

Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses ,In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.

Welded Gabion Box Specification

1. Material: Low carbon iron wire

2. Mesh Size: 50x50mm, 75x75mm, 100x50mm, 100x100mm

3. Box Size: 2x1x0.5m, 1x0.5x0.5m, 1x0.6x0.4m etc.

4. Diameter: 2.5-6.0mm

5. Tensile Strength: 380-550 N/MM2

6. Certificate: ISO9001

7. Connect way: Spiral wire,U clip,C ring,lacing wire,hook

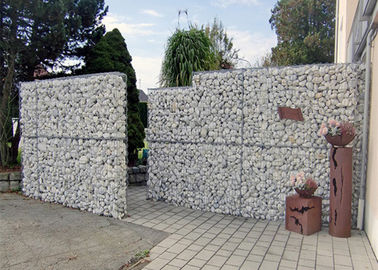

8. Application: Garden building, gabion wall,gabion fence

Feature

1. Easy to Install

Align wire mesh with the spiral pole to form a single structure, the pole will fall down automatically by itself; no tools necessary.

2. High Quality Material

Made of galvanized steel wire, resistant to rust and corrosion; with grids evenly spaced at 5 x 10 cm and hooks to fasten and keep the original shape, gabion is solid and durable.

3. Multi Purpose Use

Can be used as partitions for a retaining wall, fencing, garden decoration; road building or stabilizing inclines against erosion.

4. Cost Effective

Replace traditional walls to save cost and time, easy to operate and has an appealing look.

5. Custom Fillers

Materials for filler based on your need, cobblestone, rock, brick fragments, concrete and wood blocks; lights, flowers or plants can be added for decoration and as the highlight of your yard.

How to install Welded Gabion Box?

Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.

Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.

Step 4. Welded gabion box filled with graded stone by hand or with a shovel.

Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.

Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up

Application
