Welded Wire Mesh Netting Gabions Fencing For Retaining Walls , Gabion Wall Baskets

Welded Wire Mesh Netting Gabions Fencing For Retaining Walls , Gabion Wall Baskets
Welded Wire Mesh Netting Gabions Fencing For Retaining Walls , Gabion Wall Baskets Welded Wire Mesh Netting Gabions Fencing For Retaining Walls , Gabion Wall Baskets

Large Image :  Welded Wire Mesh Netting Gabions Fencing For Retaining Walls , Gabion Wall Baskets

Product Details:
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: GABION 2
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: Negotiated
Packaging Details: pallet
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per week

Welded Wire Mesh Netting Gabions Fencing For Retaining Walls , Gabion Wall Baskets

Description
Material: Galvanized Iron Wire, Low-Carbon Iron Wire Application: Gabions, Welded Gabion Basket, Welded Gabion Boxes,
Surface Treatment: Hot Dipped Galvanised Welded Gabions Type: Welded Mesh
Size: 2*1*1, 2*1*0.5m Etc Supply Ability: 5000 Set/Sets Per Week
High Light:

welded wire gabion baskets

,

retaining wall gabion cages



Welded Wire Mesh Netting Gabions Fencing For Retaining Walls

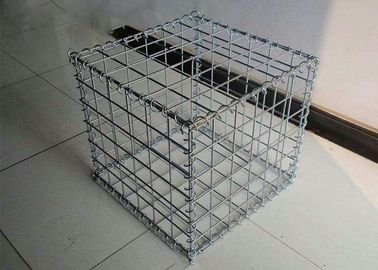

The mesh gabion box is manufactured from a main panel that forms the face, base, rear and lid of the unit. The side panels and diaphragms are then jointed to the base section of the main panel. The unit is then folded flat for transportation.
On site, the unit can be opened out into the required position and the sides, diaphragm and end panels are rotated vertically. The vertical joints are formed by a continuous lacing operation with the wire supplied or with 'C' rings to form the box shape.



Welded Mesh Gabion Specification:



Our Products Gabion box & Gabions & Rock gabions
Wire Diameter 2.0 mm - 4.0 mm
Mesh size 60*80mm, 80*100mm, 80*120mm, 90*110mm
Box size 1m*1m*1m:2m*1m*1m;3m*1m*1m;4m*1m*1m
Surface treatment PVC coated, electro or hot dipped galvanized
Characteristics

(1)It is easy to work,bright color, easy to maintain.

(2)Difficult to corrosion, long life expectancy.

(3)uniform mesh,flat surface,high quality.

Packing 1.LCL: packed with plastic film then on the pallets
2.FCL: Nude packing
3.Other special package according to customers' requirements.
Payment Terms T/T( 30% deposit , 70% balance against BL copy ) ,or L/C, Paypal, Western Union,MoneyGram, Credit Card ,OA



Corrosion Protection Galvanized 95% Zinc + 5% Alu PVC Coated
Mesh Size

50.8 x 50.8mm

76.2 x76.2mm

50.8 x 50.8mm

76.2 x76.2mm

50.8 x 50.8mm

76.2 x76.2mm

Unite Size Wire Diameter Wire Diameter Wire Diameter
1 x 1 x 1m 3.0mm,4.0mm,5.0mm 3.0mm,4.0mm,5.0mm 3.0mm/3.8mm
2 x 1x 1m 3.0mm,4.0mm,5.0mm 3.0mm,4.0mm,5.0mm 3.0mm/3.8mm
3x 1 x 1m 3.0mm,4.0mm,5.0mm 3.0mm,4.0mm,5.0mm 3.0mm/3.8mm
4 x 1 x 1m 3.0mm,4.0mm,5.0mm 3.0mm,4.0mm,5.0mm 3.0mm/3.8mm
1 x 1 x 0.5m 3.0mm,4.0mm,5.0mm 3.0mm,4.0mm,5.0mm 3.0mm/3.8mm
2 x 1x 0.5m 3.0mm,4.0mm,5.0mm 3.0mm,4.0mm,5.0mm 3.0mm/3.8mm
3x 1 x 0.5m 3.0mm,4.0mm,5.0mm 3.0mm,4.0mm,5.0mm 3.0mm/3.8mm
4 x 1 x 0.5m 3.0mm,4.0mm,5.0mm 3.0mm,4.0mm,5.0mm 3.0mm/3.8mm



Welded mesh gabion advantages:



  • Blends easily and harmoniously with the natural surroundings.
  • Low cost alternative to concrete or masonry structures.
  • Very high resistance to natural forces due to better tensile strength.
  • Can withstand any unpredictable movement or settlement without loss of stability.
  • Simple and speedy installation, making it cost effective.
  • Quality finish and appearance is more aesthetically pleasing.
  • More rigid than woven mesh resulting in a more uniform finish when built.
  • Quicker and cheaper to install than Woven Mesh gabions because no pre-stretching required.
  • Special gabions sizes and mesh such as gabions with 4mm front mesh and 3mm mesh else can be available.



How to install welded mesh gabion box?



1) Foundation preparation
The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.

2) Assembly
Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.

3) Placement
Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.


Modular Assembly


Gabion cages can be built in a modular method by eliminating an end panel for each cage so no two panels need be connected together. The same method may also be used for successive courses including lid and base panels. Interconnect each layer of gabions to the underlying layer of gabions along the front, back, and sides.

4) Filling
Staking of the gabions may be done to maintain the established proper alignment prior to the placement of rock. Connecting lacing wire and other fasteners shall be attached during the filling operation to preserve the strength and shape of the structure.
Internal connecting cross-tile (stiffener) wires shall be placed in each unrestrained gabion cell, including gabion cells left temporarily unrestrained. In welded mesh gabions these crossties or stiffeners will be placed across the corners of the gabions providing diagonal bracing. Lacing wire or preformed wire stiffeners may be used.
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.

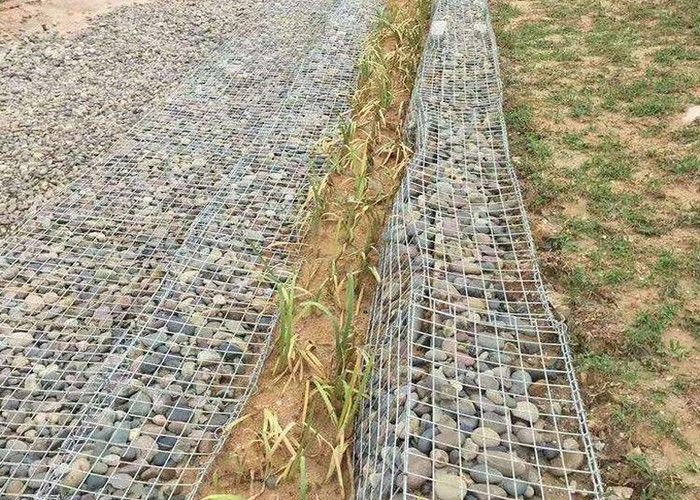

Welded Mesh gabion Application:



1.) Flood discharge and lead flow

2.) Rock fall defending

3.) Preventing the water and soil lost

4.) Protecting the bridge

5.) Reinforce fabric

6.) Seashore recovery project

7.) Seaport project

8.) Block wall

9.) Defending the road



FAQ :



1. Which port can you support?

Answer: Tianjin port or any other China port you need. If provided destination port, CFR and CIF can be quoted for your reference.



2. What's your delivery time of your products?

Answer: Usually it takes about 20-25 days after receiving the advance payment to send out the goods by sea or air.



3. What about the terms of payment?

Answer: Most customers choose 30%TT advanced payment, balance against copy of BL.Other terms of payments ways like LC.

For small orders, paypal and westunion also available.



4. What's your Minimum order quantity(MOQ) of your product?

Answer: Most customers choose 1x20"GP as trial order. Small orders are also accepted.
