Product Details:
|
| Material: | Galvanized Iron Wire | Size: | 2*1*0.5 /2*1*1 M, Can Be Customization |
|---|---|---|---|
| Mesh Size: | 50X50 Mm,50 X100 Mm | Wire Gauge: | 4.0, 5.0 Mm |
| Application: | Fence Mesh, Retaining Wall | Feature: | Anti-erosion |
| High Light: | welded wire gabion baskets,retaining wall gabion cages |
||

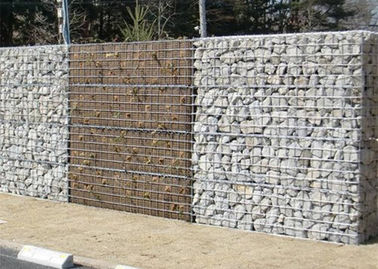

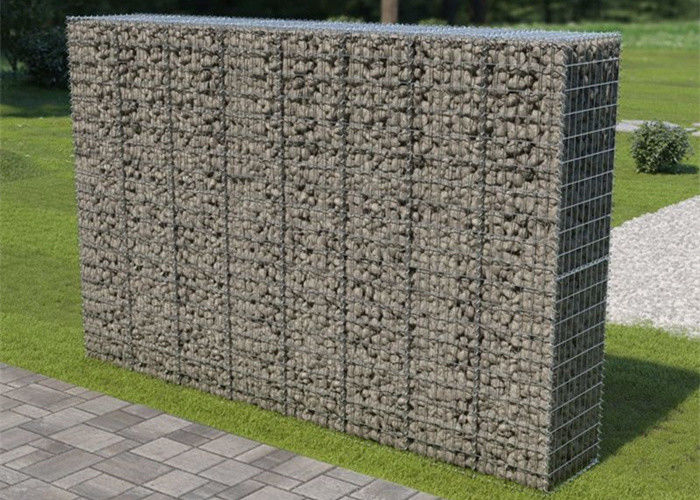

1x1x0.5m 2x1x1m Welded Mesh Gabion Box, Gabion Retaining Wall
Description
Welded Gabion box is high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet diffferent project requirements, various wire diameters and unit sizes available for welded gabion boxes.
1. MOQ:100 sets
2. Material:galvanized steel wire
3. Surface Treatment: Hot dip galvanized
4. Usage: Used for garden,road,playground,park etc
5. Packaging Details: Packed with plastic film then on the pallets and then in wooden box
| Length(m) | Width(m) | Height(m) | Wire diameter(mm) | Mesh Aperture(mm) | Diaphragm | |
| 1.0 | 1.0 | 0.5or1.0 | Mesh Wire | Helical Spiral |
50*100 100*100 50*70 76*76 |
no |
| 1.5 | 1.0 | 0.5or1.0 | 2.7-4.5 | 4mm | no | |
| 2.0 | 1.0 | 0.5or1.0 | 1 | |||
| 3.0 | 1.0 | 0.5or1.0 | 2 | |||
| 4.0 | 1.0 | 0.5or1.0 | 3 | |||
| 5.0 | 1.0 | 0.5or1.0 | 4 | |||
Feature
1.Flexible structure to adapt to changes in the alope without being destroyed than the rigid structure with better security and stability.
2.Anti-erosion ability, can withstand the maximum flow rate of up to 6m/s.
3.The structure has essentially permeable, and the natural role of groundwater filtering effect has a strong inclusive of the water suspended matter and silt to be deposited to fill the crevice, which is conducive to natural plant growth, and gradually restore the original some of the ecological environment.
How to install Welded Gabion Box?
1) Foundation preparation
The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.
2) Assembly
Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.
3) Placement
Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.
4) Filling
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.
Application
| 1. Control and guide of water or flood | 2. Preventing of rock breaking |
| 3. Rock fall protection | 4. Water and soil protection |
| 5. Bridge protection | 6.Strengthening structure of soil |
| 7. Protection engineering of seaside area | 8. Port project |
| 9. Keep off dust wall | 10.roadway protection |
