Product Details:
|
| Wire Gauge: | 4mm, 5mm | Mesh Opening: | 50X50mm, 76.2X76.2mm |
|---|---|---|---|
| Geotextile: | Heavy Duty Non-woven Polypropylene | Panel Size: | 2.21m X2.13m |
| Name: | Hesco Barrier MIL 7 | Uasge: | For Military Protection, Flood Control |
| High Light: | welded mesh gabions,barrier defence |
||
Hot Dipped Galvanized Hesco Barrier MIL 7 Defensive Hesco Bastion for Saudi Arabia
Product Description

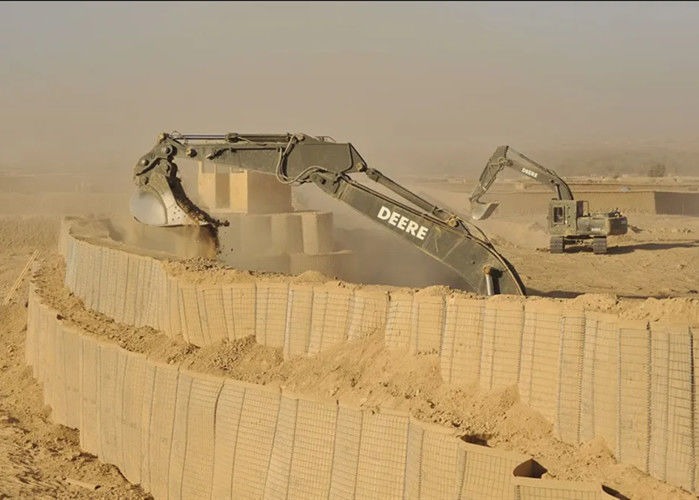

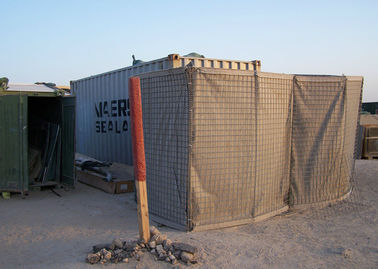

This is a collapsible wire mesh container . Open in up and use a front end loader to fill it with sand (dirt or gravel) and you have a protective hesco bastion to protect personnel and equipment from enemy fire (or bombs).
Known as a Hesco Barrier MIL 7, it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand — preferably with a front-end loader — to make a barrier resistant to small arms fire and shrapnel. They can be stacked or lined in double rows to provide additional protection from rocket-propelled grenades and bombs.
Specification
| Hesco Barrier MIL 7 Defensive Hesco Bastion | ||||
|
Product Item standard
|
Height
|
Width
|
Length
|
Cells
|
|
MIL1
|
54''(1.37m)
|
42''(1.06m)
|
32'9''(10m)
|
1*4+1*5 cells
|
|
MIL2
|
24''(0.61m)
|
24''(0.61m)
|
4'(1.22m)
|
2 cells
|
|
MIL3
|
39''(1.00m)
|
39''(1.00m)
|
32'9''(10m)
|
2*5 cells
|
|
MIL4
|
39''(1.00m)
|
60''(1.52m)
|
32'9''(10m)
|
2*5 cells
|
|
MIL5
|
24''(0.61m)
|
24''(0.61m)
|
10'(3.05m)
|
5 cells
|
|
MIL6
|
66''(1.68m)
|
24''(0.61m)
|
10'(3.05m)
|
5 cells
|
|
MIL7
|
87''(2.21m)
|
84''(2.13m)
|
91'(27.74m)
|
2*4+1*5 cells
|
|
MIL8
|
54''(1.37m)
|
48''(1.22m)
|
32'9''(9.14m)
|
1*4+1*5 cells
|
|
MIL9
|
39'(1.00m)
|
30''(0.76m)
|
30'(9.14m)
|
2*6 cells
|
|
MIL10
|
87''(2.21m)
|
60''(1.52m)
|
100'(30.5m)
|
4*5 cells
|
|
MIL11
|
48''(1.22m)
|
12''(0.3m)
|
4'(1.22m)
|
4 cells
|
|
MIL12
|
84''(2.13m)
|
42''(1.06m)
|
108'(33m)
|
6*5 cells
|
|
MIL19
|
108''(2.74m)
|
42''(1.06m)
|
10'5''(3.18m)
|
3 cells
|
Applications
The Hesco Barrier MIL 7 come in a variety of sizes. Currently exported to many countries and regions, exported to Iraq, Burkina Faso, the United States, Hong Kong, Greece, India, Saudi Arabia and other countries, but also supports customization.
| 1. Personnel bunkers | 2. Guard post |
| 3. Police force points and Check points | 4. Military Defensive barriers |
| 5. Perimeter security barrier or border barrier | 6. Temporary fort and command post |
| 7. Observation points and border checkpoints | 8. Shellproof defence barrier |
Features
1. A pre-fabricated gabion of galvanised welded-mesh steel fitted with a UV-protected Polypropylene geo-textile liner.
2. Filling material is an easily-obtained mix of sand and small stones.
3. Can be connected together to any length, and can be stacked for additional height.
4. Primary military use is as force protection against blast and projectiles.
5. The unique design, strength and versatility enable corners to be constructed easily, shaping the defensive barrier to the surrounding landscape and when joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
6. One of the best features of the defensive barrier is the ease in which it is set up. Get it flown in or pull it off a truck, unfold it, use a front end loader or other heavy equipment to fill it up with dirt, sand or gravel.
