Product Details:
|
| Components: | Gabion Mesh,Spring, Joint Pin, Geotextile Fabric | Sureface Treatment: | Heavy Hot Dipped Galvanized |
|---|---|---|---|
| Mesh Hole: | 3" X 3" | Wire: | 5.0mm |
| Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
| Type: | Welded Wire Mesh | Style: | Mil 1 -- Mil 10 |
| High Light: | 76.2×76.2mm military barrier,military barrier with geotextile fabric,geotextile fabric defensive barrier |
||
Collapsible Wire Mesh Frames 76.2×76.2mm Military Barrier With Geotextile Fabric
Introduction of Military Barriers :
1. Military Barrier is a multi-cellular barrier system lined with heavy-duty, geotextile fabric and manufactured from welded Zinc-Aluminium coated steel mesh.

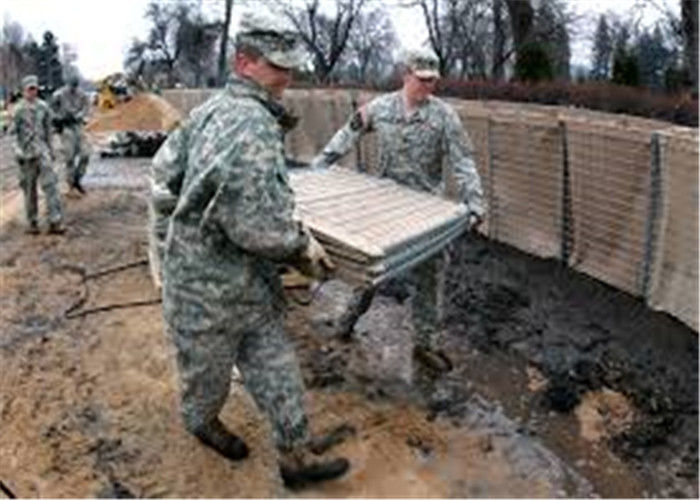

Known as a Military defensive barrier, it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand — preferably with a front-end loader — to make a barrier resistant to small arms fire and shrapnel. They can be stacked or lined in double rows to provide additional protection from rocket-propelled grenades and bombs.
2. Specification:
1) Material: Steel wire, galvanized wire
2) Wire diameter: 4mm-5mm
3) Hole: 76.2×76.2mm
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
5) Geotextile: in non-woven geotextile, color can be white, beige-sand color.
6) Color: White, Sand color, Military Green
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Military barriers Sand Wall Application:
The versatility of Collapsible Wire Mesh Frames 76.2×76.2mm Military Barrier With Geotextile Fabric enables it to be used across a variety of applications such as coastal erosion, flood protection, river and bank stabilisation, retaining walls, land reinforcement and soil conservation.

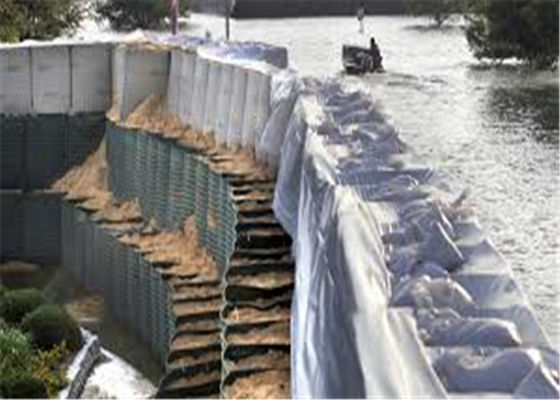

1. Flood protection
Most of People used as the bulwark all over the river, unfold it and filled with sand or earth, instad of sandbags, it is easy to operate and efficacious.

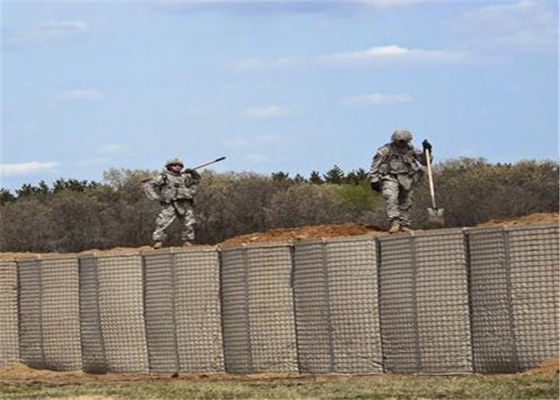

2. Military Defence
Most of army used for protection, because the bullet can not penetrate it easily, it can prevent explosion, and not easy to destroied.
3. Hotel Pretection
A lot of Superior Hotel used as the protection wall outside, safety, and beautiful.
4.River and bank stabilisation
5.Retaining walls
6.land reinforcement and soil conservation
