Product Details:
|
| Certification: | CE SGS | Mesh Size: | 3"x 3" Or 8cm X 8cm |
|---|---|---|---|
| Internal Cells: | 5+4=9 Cells | Dimensions: | 4'6" X 3'6" X 32' |
| Geotextile Color: | White, Beige Or Military Green | Application: | Military Defensive Barrier, Flood Barrier, Etc. |
| Life Duration: | ≥ 25 Years | Geotextile: | In Heavy Duty Non-woven Polypropylene |
| High Light: | military protective bastion hesco baskets,military protective bastion Sand Filled Barriers,galfan Sand Filled Barriers |
||
1 x 1 x 1 Military Protective Bastion Galfan Hesco Barrier Sand Filled Gabion Hesco Blast Wall Containment Prices
Sand Filled Barriers are some lined units assembled by galvanized gabion baskets with heavy duty non-woven geotextile to prevent flood. China barrier bastion factory-Anping Shuxin Wire Mesh Manufactory Co.,Ltd is one original and professional maufacturer located in Anping county-the largest wire mesh base in China.
Available OEM & ODM in developing military barriers, we can provide all ideal designs for your projects. The popular unit types of blast wall, all types can be customized to recoverable types . Regarding the color of geotextile, available in beige color, militatry green color and grey color,etc.
The Hesco Barrier come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 4'6" x 3'6" x 32' (1.4m x 1.1m x 9.8m) to 7' x 5' x 100' (2.1m x 1.5m x 30m).
We will meet any special sizes you required, and support professional advises according to your projects.
Sand Filled Barriers operational principle
It is made of galvanized welded mesh panels, spring with other fittings, canbe filled with sand,earth,
cement, stone, can be used in separate cell or some cells joint together.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |

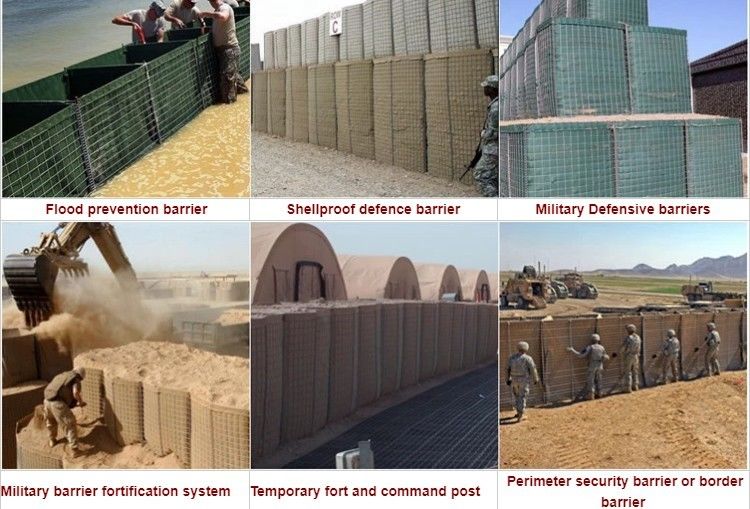

Sand Filled Barriers Application
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
Package: Warapped with shrink film then packed in pallet,and the last packed with steel belt .
We supply hesco barrier from Mil1-Mil10
It is a multi-cellular barrier system manufactured from welded zinc-aluminum coated steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
The hesco bastion is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan,Dominican Republic, Afghanistan, Iraq, USA, France, Kenya, Iran, Saudi Arabia, Italy, Germany.Pakistan, Kazakhstan, Mali, Burkina Faso, Ghana, Mozambique
