Product Details:
|

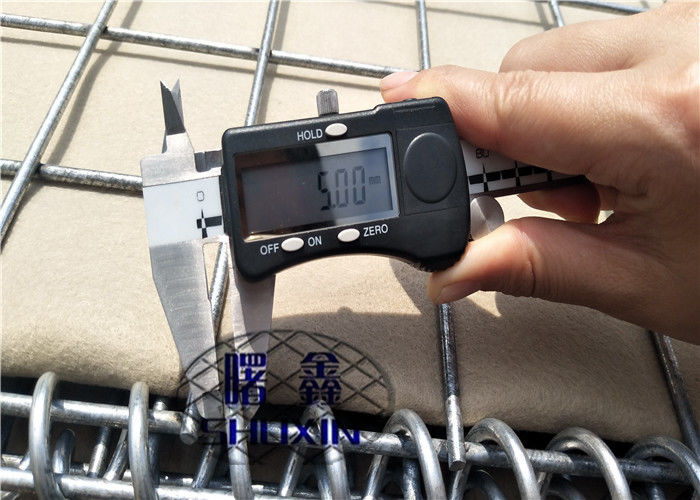

| Material: | Q195 Low Carbon Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Spring Wire: | 4.0mm | Surface Treatment: | Heavy Hot Dipped Galvanized |
| Geotextile: | 300gsm Sand Color,Green Color | Life Duration: | ≥ 25 Years |
| Warranty: | ≥ 3 Years | Geotextile Color: | Beige |
| Height: | 9' | Size: | Mil 10 |
| High Light: | military edge protection wall bastion barrier,mil 10 bastion barrier,bastion barrier hdg |
||
Height 9' Mil 10 Military Edge Protection Wall Hesco Barrier Bastion Fence Military Barrier With Geotextile Fabric
What is the Hesco Barrier Bastion ?
Hesco Barrier Bastion can be filled with sand, earth, gravel, aggregates, rubble, bricks, even some fine sediment, etc.
Hesco defensive barriers are widely used for explosion-proof against attacks from rifle bullets, shell fragments, rocket propelled grenade round, especially used in Afghanistan, Syria, Iraq, Iran, Jordan, etc. It is also used for flood control in cities, so its another name is hesco flood control barrier.
In both military sand security applications the military barrier affords protection from small arms fire right up to VBIEDs and artillery. PeiGuan's military defensive barriers are mainly used for Homeland Security applications providing critical infrastructure protection including perimeter security, vehicle barriers and inspection lanes as well as temporary or permanent barriers.
Specification of Hesco Barrier Bastion :
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be green,beige-sand color.
Hesco Barrier Bastion Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Hesco Barrier Bastion Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall
Application :
1. Military protection
2. Control and guide of water or flood
3. Flood bank or guiding bank
4. Preventing of rock breaking
5. Water and soil protection
6. Bridge protection
7. Strengthening structure of soil
8. Protection engineering of seaside area.
