Product Details:
|

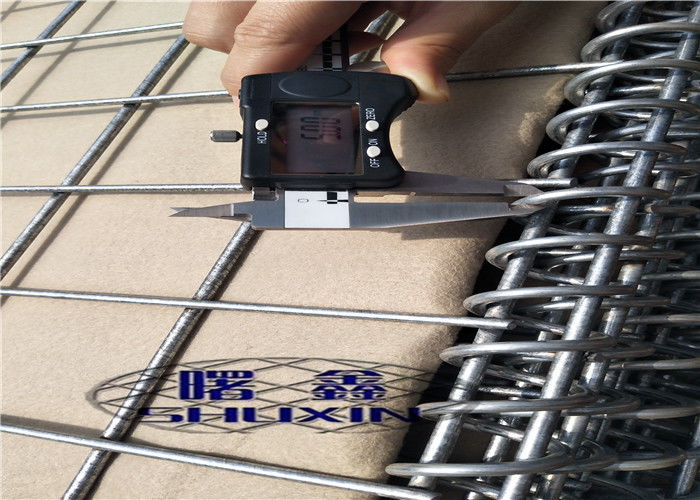

| Material: | Zinc-5% Aluminum Alloy Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Spring Wire: | 5.0 Mm | Standard: | ASTM B750 ASTM A856 |
| Geotextile: | Non-woven Polypropylene Geotextile Fabric | Geotextile Color: | Beige, Green, Tan, |
| Component: | Mesh Panel , Spiral Wire Hinges, Connect Pins | Application: | Flood Control , Militay Defence , Hotel Protection |
| Height: | 7'3" | Mil: | 3 |
| High Light: | bastion military barrier,mil 3 military barrier,astm a856 standard military barrier |
||
Height 7'3" Wholesale Hesco Barrier House Hesco Mil 3 Bastion Military Barrier With Geotextile Filter Fabric
What is the Hesco Barrier House ?
A geotextile lined unit for general use as an earth filled barrier .
The units are suiltable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the contruction of protective walls and barriers.
Hesco Barrier House also named as sand cage, welded gabion box, wire mesh gabion box, stone cage.
--- Material have galvanized , galfan coated wire
--- Experienced factory in manufacturing .
--- U.S Military approved quality .
--- Short shipping time.
The Hesco Barrier House is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries .
Specification of Mil 12 Unit :
|
Material : All wires conform to BS EN10218-2012, Zinc-Alunminum coating are to BS EN 10244-2:2009 Geotextile: heavy duty geotextile, non-woven,permeable, polypropulene farbric Geotextile color: beige or green color
Mesh Hole: 3” X 3” Unit Size : 2.13m x 1.06m x 33m Cells:1unit=5 cells+5cells+5cells+5cells+5cells+5cells=30cells
|
|||
| Item No. | Height | Width | Length | all dimensions and weight are nominal ,Diagrams and products are for illustrative purpose only. |
| SX12 (Mil 12) |
7’ (2.13m) |
3’6” (1.06m) |
108’ (33m) |
|
A geotextile lined unit for general use as an earth filled barrier .
The units are suitable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the construction of protective walls and barriers.
Hesco Barrier HouseSpecification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Hesco Barrier House Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall
Our mission is quality first, reputation above all. All of the products should be tested before loading. Only the qualified products can be delivered to the customers.
We have specialized equipments and professional inspectors. We can supply the quality assurance to the customer.
Due to our hard working technicians and the continuously pursue of outstanding quality, we have exported our product to Northern America, Europe, South Africa, Latin America, the Middle East, the Oceania, and Asia, etc.
