Product Details:
|
| Material: | Steel Wire | Mesh Wire: | 5.0mm |
|---|---|---|---|
| Aperture: | 3" (76.2mm) X 3" (76.2mm) | Surface Treatment: | Heavy Hot Dipped Galvanized |
| Geotextile: | 300 Gsm Sand Color,Green Color | Life Duration: | 25 Years |
| Size: | Mil 1-mil 10 | Geotextile Color: | Beige-sand Color |
| Height: | 4'6" | Model: | 10 |
| High Light: | 5.0mm hesco bastion barrier,geotextile filter fabric hesco bastion barrier,mil 1 hesco bastion barrier |
||
Height 4'6" China Factory Military Barrier HESCO With Geotextile Filter Fabric
1. Introduction :

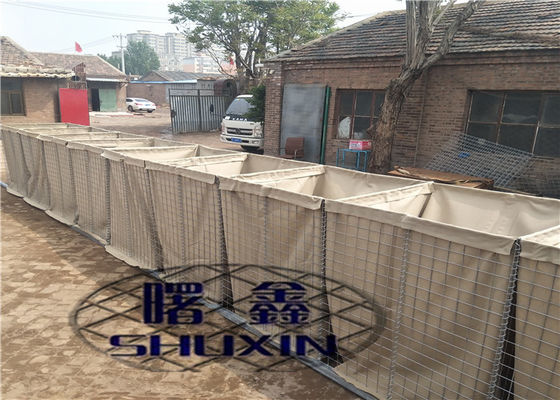

Military Gabion Box Defensive Barriers Beige Sand Geotextile CE Certification is gabion box. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
Gabion bastions are mainly used in military and flood control for its modular structure and quick setup. For military, a gabion Hesco with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel. While for flood protection, gabion Hesco can be assembled soonest and come into use.
Military Gabion Box used in many countries around the world including Afghanistan, Iraq, Bosnia, Kosovo, Yemen, Sri Lanka, Jordan, UAE and Turkey. Most military organizations currently use Military Gabion Box including the US Army, UK MOD, USMC, USAF and NATO.
SHUXIN Company military bastion do a good Job in Military area, flood controlling now. Now had already went to Front Line of Battle-filed to act as a good protector for the soldiers.
Specifications of Military Barrier HESCO as follows :
1) wire diameter: 4mm-5mm
2) Wire mesh hole: 3''x3''
3) Panel size: 0.61x0.61m, 1.06x1.37m, 2.13x2.21m etc., other sizes can be produced as requested.
4) Geotextile: In non-woven geotextile, color can be white, beige-sand color or OEM.
2. Material:
It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
3. Finish: electro galvanized,hot dipped galvanized,galfan coated,
Military Barrier HESCO Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Barrier HESCO Use Deatils:
Unpack---Pull out and set up-----Connect together---- Fill and compact----Finished
Military Barrier HESCO Application :
♦ Perimeter security and defense walls
♦ Equipment revetments
♦ Personnel and material bunkers
♦ Observation points
♦ Defensive firing positions
♦ Guard posts
♦ Protection engineering of seaside area
♦ Border crossing checkpoints
♦ Protecting existing structures
♦ Flood control retaining wall
