Product Details:
|
| Material: | Low Carbon Steel Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Spring Wire: | 4.0 Mm | Surface Treatment: | Heavy Hot Dipped Galvanized |
| Geotextile: | 300gsm Sand Color,Green Color | Life Duration: | ≥ 25 Years |
| Size: | Mil 1-mil 10 | Geotextile Color: | Beige |
| Height: | 4' | Model: | Mil 5 |
| High Light: | geotextile filter fabric defensive barrier,defensive barrier mil 10,4mm defensive barrier |
||
Height 4' Hesco Barrier Wall In China Factory Hesco Bastion Military Barrier With Geotextile Filter Fabric
Description of Hesco Bastion Military Barrier :
Mesh Gabion Box Explosion-proof Wall , has the ability of resisting explosive shock wave and can limit the damage of explosion to a certain range of wall.
Hesco Bastion Military Barrier also named as sand cage, welded gabion box, wire mesh gabion box, stone cage.
--- Material have galvanized , galfan coated wire
--- Experienced factory in manufacturing .
--- U.S Military approved quality .
--- Short shipping time.

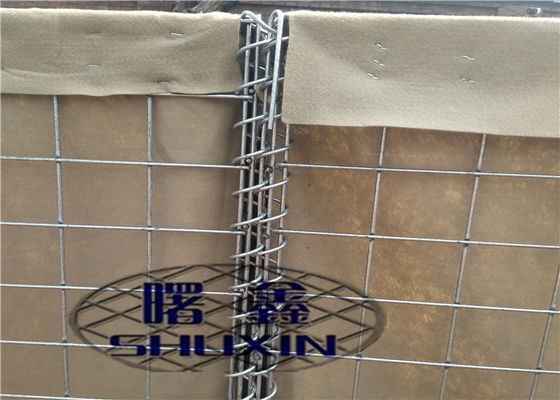

The Hesco Bastion Military Barrier is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries .
Hesco Bastion Military Barrier Features :
1, Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for additional height.
2, The spiral hinged corners allows flat packing for ease of transportation
3, The welded mesh frame is of highly durable construction
4, The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that gives the system its strength.
5, The non-woven geotextile liner allowing a wide range of fill material
Specification of Hesco Bastion Military Barrier :
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
4) geotextile: in non-woven geotextile,color can be green,beige-sand color.
Hesco Bastion Military Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
1. Military Safety Explosion-proof Wall
2. Three-dimensional explosion-proof wall
3. Explosion-proof wall of training base
4. Explosion-proof wall of field warehouse
5. Explosion-proof walls in field camps
6. Explosion-proof wall of dangerous goods warehouse
7. Explosion-proof wall of chemical plant
8. Explosion-proof wall of refinery
9. Explosion-proof wall in firecracker factory
10. Explosion-proof wall of storage depot
11. Explosion-proof wall of barracks
12. Flood protection wall
13. Urban Waterlogging and Flood Control Wall
14. Emergency Flood Control Wall
15. Landslide prevention facilities
16. Mobile enclosure of workshop
