Product Details:
|
| Material: | Q195 Low Carbon Wire | Mesh Wire: | 5.0mm |
|---|---|---|---|
| Spring Wire: | 4.0mm | Mesh: | 3"x3" |
| Surface Treatment: | Hot Dipped Galvanized | Geotextile: | 300gsm Sand Color,Green Color |
| Application: | Military Protection | Main Market: | Kenya, Africa |
| Height: | 7'3" | Mil: | 3 |
| High Light: | galvanization defensive barrier,mil 10 defensive barrier,300gsm defensive barrier |
||
Height 7'3" Military Sand Wall Hesco Defensive Barriers Army Gabion Hesco Bastion Afghanistan Hesco
Hesco barrier also named as Hesco bastion, Hesco defense wall, Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall for military use, Wire mesh gabion box, Stone cage etc.
Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint together .
Hesco Defensive Barriers Detail Specification
Wire diameter: 4mm, 5mm
Mesh size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated

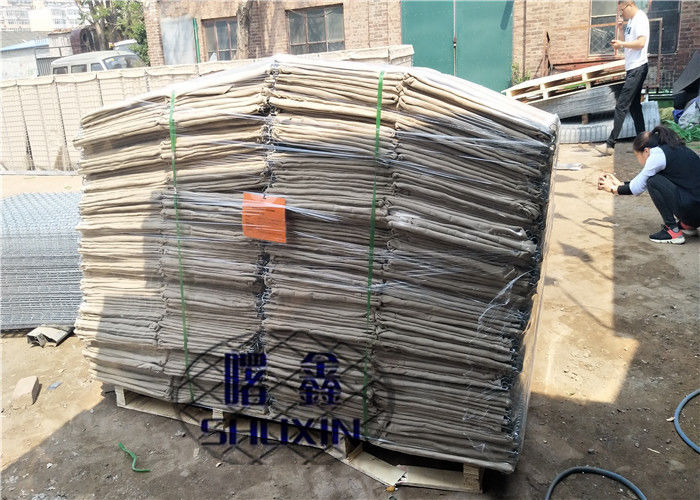

Packing: packed in pallet then wrapped with shrink film
Hesco Defensive Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Hesco Defensive Barriers Application
1. Military protection
2. Control and guide of water or flood
3. Flood bank or guiding bank
4. Preventing of rock breaking
5. Water and soil protection
6. Bridge protection
7. Strengthening structure of soil
8. Protection engineering of seaside area.
