Product Details:
|
| Material: | Zinc-5% Aluminum Alloy Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Spring Wire: | 5.0 Mm | Standard: | ASTM B750 ASTM A856 |
| Geotextile: | Non-woven Polypropylene Geotextile Fabric | Geotextile Color: | Beige, Green, Tan, |
| Component: | Mesh Panel , Spiral Wire Hinges, Connect Pins | Application: | Flood Control , Militay Defence , Hotel Protection |
| Height: | 4'6" | Mil: | 4 |
| High Light: | mil 9 defensive barrier,heavy galvanized defensive barrier,ASTM B750 defensive barrier |
||
Height 4'6" Heavy Galvanized Mil 9 Military Defensive Hesco Barriers Hesco Easy Install Flood Barrier

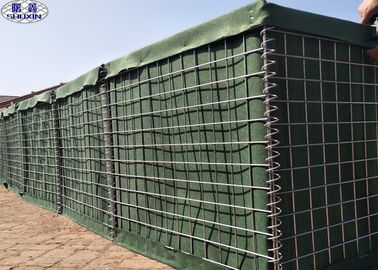

What is the Military Defensive Hesco Barriers?
A geotextile lined unit for general use as an earth filled barrier .
The units are suiltable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the contruction of protective walls and barriers.
Military Defensive Hesco Barriers also named as sand cage, welded gabion box, wire mesh gabion box, stone cage.
--- Material have galvanized , galfan coated wire
--- Experienced factory in manufacturing .
--- U.S Military approved quality .
--- Short shipping time.
Specification of Mil 9 Unit :
|
Material : All wires conform to BS EN10218-2012, Zinc-Alunminum coating are to BS EN 10244-2:2009 Geotextile: heavy duty geotextile, non-woven,permeable, polypropulene farbric Geotextile color: beige or green color
Mesh Hole: 3” X 3” Unit Size : 1.00m x 0.76m x 9.14m Cells: 1 unit = 6 cells + 6cells=12 cells
|
|||
| Item No. | Height | Width | Length | all dimensions and weight are nominal ,Diagrams and products are for illustrative purpose only. |
| SX9 (Mil 9) |
3’3” (1.00m) |
2’6” (0.76m) |
30’ (9.14m) |
|
A geotextile lined unit for general use as an earth filled barrier .
The units are suitable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the construction of protective walls and barriers.
Military Defensive Hesco Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Defensive Hesco Barriers Application :
1. Military protection
2. Control and guide of water or flood
3. Flood bank or guiding bank
4. Preventing of rock breaking
5. Water and soil protection
6. Bridge protection
7. Strengthening structure of soil
8. Protection engineering of seaside area.
We have specialized equipments and professional inspectors. We can supply the quality assurance to the customer.
Due to our hard working technicians and the continuously pursue of outstanding quality, we have exported our product to Northern America, Europe, South Africa, Latin America, the Middle East, the Oceania, and Asia, etc.
