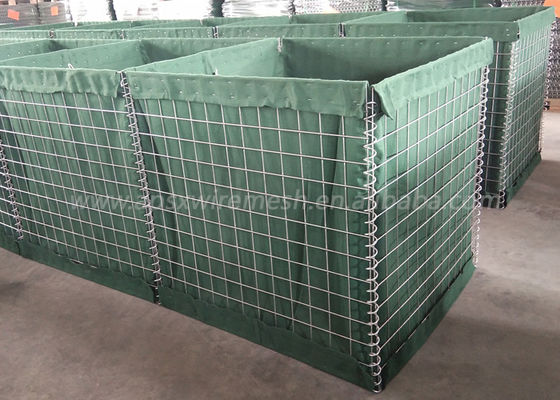

Collapsible Welded Steel Wire Mesh 3x3 Mil 2 Defensive Barrier

Collapsible Welded Steel Wire Mesh 3x3 Mil 2 Defensive Barrier
Collapsible Welded Steel Wire Mesh 3x3 Mil 2 Defensive Barrier Collapsible Welded Steel Wire Mesh 3x3 Mil 2 Defensive Barrier Collapsible Welded Steel Wire Mesh 3x3 Mil 2 Defensive Barrier

Large Image :  Collapsible Welded Steel Wire Mesh 3x3 Mil 2 Defensive Barrier

Product Details:
Place of Origin: Hebei,China
Brand Name: SHUXIN
Certification: SGS COC ISO PVOC
Model Number: SX-Mil 2
Payment & Shipping Terms:
Minimum Order Quantity: 130 sets
Price: Negotiated
Packaging Details: Pallet and plastic film
Delivery Time: 15 Working Days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 100 sets per week

Collapsible Welded Steel Wire Mesh 3x3 Mil 2 Defensive Barrier

Description
Mesh Size: 3" X 3",(7.62*7.62cm) Accessories: Spring, Joint Pin, Geotextile
Geotextile: 300 G/m2,waterproof, Good Penetration Application: Military Barriers,River Pretection
Feature: Easy To Assemble,Good Permeability. Raw Materials: Hot Dipped Galvanized
Life Duration: ≥ 25 Years
High Light:

SGS defensive barrier

,

3x3 defensive barrier

,

mil 2 defensive barrier

Collapsible Barrier Welded Steel Wire Mesh Defensive Barrier For Sale



The Military Gabion Barrier Bastion Sand Wall come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Whether used as a protective barrier or to define boundaries, Military Gabion Barrier Bastion Sand Wall have been employed to safeguard equipment, facilities, vehicles, personnel and critical assets in a variety of operations such as military, peacekeeping, humanitarian and civilian.



  • 1.Introduction

Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for military defense and flood control.

  • 2. Working principle:

It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.

  • 3. Quality assurance:

Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012



Defensive Barrier Specification:



Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells



Applications of the Defensive Barriers



1. Police force points and Check points

2. Military Defensive barriers

3. Observation points and border checkpoints

4. Military barrier fortification system

5. Border control and temporary accommodation bunkers





Mesh gabion box Application:



Perimeter Security and Defence Walls

Equipment Revetments

Personnel and Material Bunkers

Observation Points

Defensive Firing Positions

Guard Posts

Explosives and Contraband Search Areas

Highway Checkpoints

Border Crossing Checkpoints

Protecting Existing Structures

Flood control retaining wall

Coastal Erosion

Protection engineering of seaside area.



The Advantages for Barrier:


1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.


2. Anti-Corrosion
The Raw material is Hot Dipped Galvanized Wire, it can use 10 years even more longer, fit for outside protection.


3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.


4. Quick Displacements
When you want to use it in another place,Just to move it, It can use many times.


5. Easy to repair
If some part is destroyed, Just left it and connect the new one is okay.



 Market trend of Defensive Barriers



1. Military fortifications Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.

2. Shooting range Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.

3. Flood control Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.



Packaging:



The welded gabion mesh are collapsed when shipping.Usually in nude, or in pallet then wrapped with plastic film.Besides, customers' request are also available.
