Product Details:
|
| Stock: | 500 Pcs | Mesh Hole: | 3"x3" 76.2x76.2mm 75mmx75mm |
|---|---|---|---|
| Surface Treatment: | Hot Dipped Galvanized | Wire Diameter: | 5mm |
| Geotextile: | Green Or Sand Color, 300gsm | Package: | Plastic And Then Pallet |
| Application: | River Flood Protection, Army,Military | Name: | 5 Mm Military Bastion HESCO Sand Filled Barriers |
| High Light: | 5mm sand filled barriers,300gsm weld sand filled barriers,75x75mm sand filled barriers |
||
Military Bastion Barriers,5 mm HESCO Defensive Barriers,HESCO Sand Filled Barriers

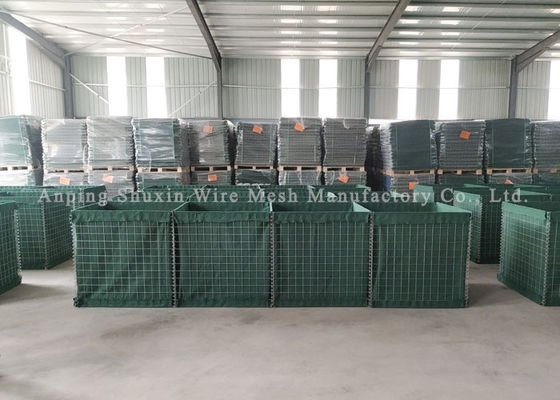

5 mm Military Bastion HESCO Sand Filled Barriers is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.
Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.
As the name implies, the military defense barrier was originally mainly used for military, military protection, military fortifications, explosion-proof walls, etc. It is made of foldable welded gabion net and ultraviolet protection heavy geotextile lining. The common surface treatment is hot dip galvanizing before welding, welding after galvanizing and Galfan coating. They all have a long service life. It is widely used in Iraq, Afghanistan and Africa.
5 mm Military Bastion HESCO Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Detail Specification
Hot galvanized wire
Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)
Spring wire for connecting mesh plates
Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm

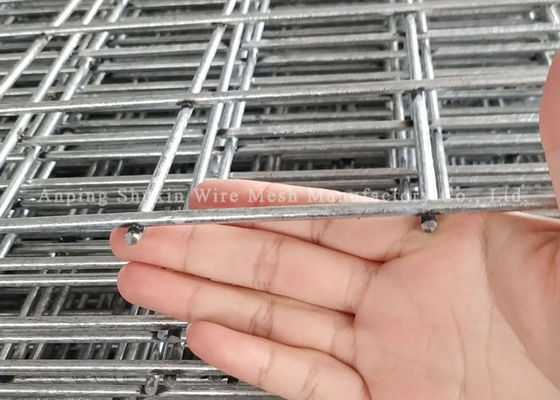

Welded mesh plate
We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.
Geotextile
It has various colors: sand, brown, gray and military green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.
Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
Advantages:
Once filled with soil, sand or gravel, forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire. For example:
Two feet thick barriers can be used to stop rifle bullets and shell fragments.
Four feet thick barriers can prevent most car bombs.
Five feet thick barriers is ideal for preventing penetration and explosion fragments from rocket propelled grenade.
HESCO bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.
Can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.
Provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our KNSCO do ten times the work.
