Product Details:
|
| Stock: | 1000 Pcs | Product Name: | Military Hesco Barrier Fill Sand,Hesco Blast Wall |
|---|---|---|---|
| Surface Treatment: | Hot Dipped Galvanized | Specification: | Mil1 To Mil 10 |
| Color Of Geotextile: | Sand, Gray, Brown, Miltary Green | Package: | Plastic And Then Pallet |
| Application: | Miltaty Or Flood Control | Wire Diameter: | 3.0-6.0mm |
| High Light: | mil 3 sand filled barriers,3mm dia sand filled barriers,mil 3 hesco blast walls |
||

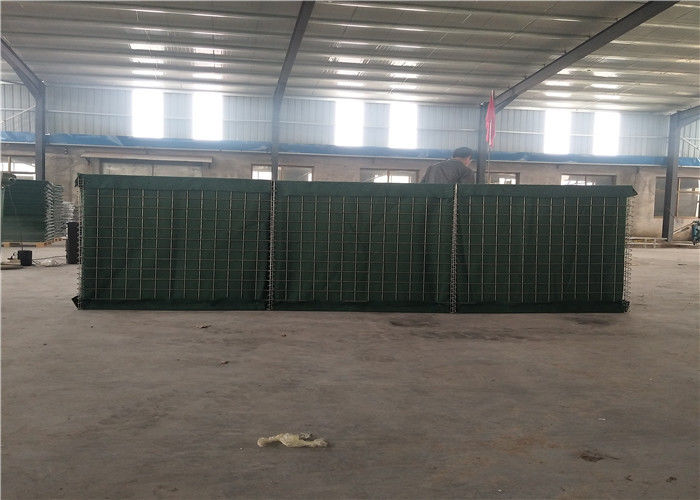

Military Hesco Barrier Fill Sand,Hesco Blast Wall
Military Hesco Barrier Fill Sand,Hesco Blast Wall is also named as Welded bastion, Welded defense wall, Welded Barrier, Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.
|
|
Material: Galvanized steel wire or Galfan/ zinc-5%aluminum wire Service Life: 15-20 years Price:19.8$-99.8$/set Wire diameter: 3.0mm- 6.0mm Aperture:50*50mm 75*75mm 76.2*76.2mm 80*80mm 100*100mm etc Color of geotextile:Grey and Military Green,Sand color etc Gram Weight of geotextile:200g/m2 or 300g/m2 Finish:hot dipped galvanized,Galfan wire. Welded method:welded after galvanized or galvanized after welded Packing:Wrapped with shrink film then packed in wood pallet or iron pallet |
Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
operational principle
It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.
Quick Details
| Unit Type |
Height (M) |
Width (M) |
Length (M) |
Internal Cells |
| SX-01 | 1.37 | 1.08 | 10 | 9 |
| SX-02 | 0.61 | 0.61 | 1.22 | 2 |
| SX-03 | 1.0 | 1.0 | 10 | 10 |
| SX-04 | 1.0 | 1.5 | 6 | 6 |
| SX-05 | 0.61 | 0.61 | 3.05 | 5 |
| SX-06 | 1.68 | 0.61 | 3.05 | 5 |
| SX-07 | 2.21 | 2.13 | 8.25 | 4 |
| SX-08 | 1.37 | 1.22 | 10 | 9 |
| SX-09 | 1.0 | 0.76 | 6.84 | 9 |
| SX-10 | 2.13 | 1.52 | 7.6 | 5 |
