Retaining Galvanized Three Twisted Hexagonal Gabion Basket

Retaining Gabion Wall Cages Galvanized Three Twisted Hexagonal Gabion Basket In Tasmania

Product Description:

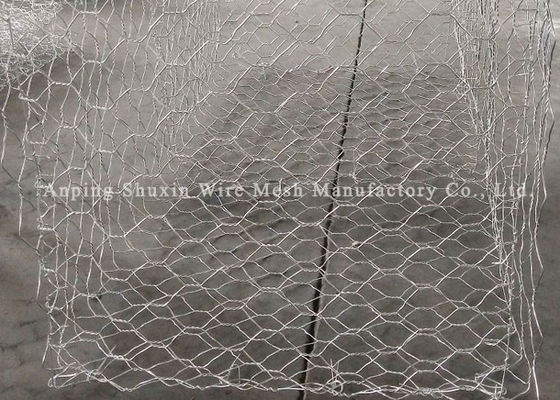

Gabion wall cages are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.

Hole size: 60*80mm,80*100mm,100*120mm, etc


Wire size:

1.Mesh wire: 2mm-4mm
2.Edge wire: 0.5mm-1mm
3.Binding wire: 2.2mm


Tensile resistance: Above 38kg/m2 380N/mm


Gabion Cage Applications :

Bridge protection

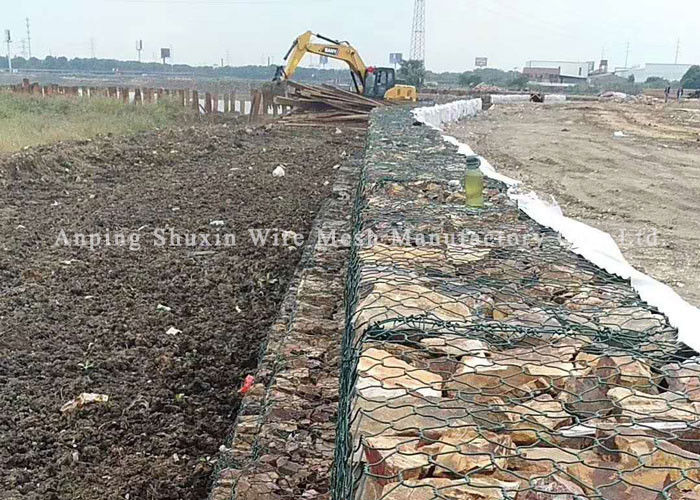

Gabions offer excellent protection as soil stabilizers around bridges, bridge piers and abutment slopes. Generally, the degree of the slope to be protected shall determine what structure type is best suited for a specific application. Slopes with an angle of 1:1 or steeper usually require standard gabion retaining wall protection. Slopes with an angle of 1:1.5 or less may use a combination of gabion baskets and/or mattresses for slope protection.

Gabion mattresses used in channel for erosion protection

The cracks between the rocks used to pack gabions are frequently filled with soil to encourage plant growth, which makes gabion retaining walls ideal for projects where beauty is a must, such as controlling soil erosion along waterways that run through residential areas that need to be both long lasting and visually pleasing.

Gabion Cage Advantage :

1.The construction is simple,only needs to put the stone into the cage seal can, no special technology is required, and no water and electricity is required.
2.The cost is low, and the cost per square meter is only about 3 USD.
3.The landscape and protective effects are good.The combination of engineering measures and plant measures adopted by the gabion box technology can effectively prevent soil and water loss, and the landscape effect is quick, and the landscape effect is more natural and rich.
4.The service life is long, and the technology life of the gabion box is several decades, and the maintenance is generally not needed.Because of this, the dam protection project of huangshi section of the Yangtze river, the flood prevention project of taihu lake, the three gorges sanduping bank protection project and so on have adopted this technology.

Gabion Wall Cages Installation Process:

1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh

2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels

3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped

4. Box gabion filled with graded stone by hand or with a shovel.

5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.

6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.

Packing:

woven bags of the above and bottom,high quality package or as customers requested

In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet.

According to customers requirement.

Shipping:

Production time :15-20 days after received your payments

Transportation way : by sea or by air

Port: Tianjin XINGANG or as your choice
