Product Details:
|
| Material: | HDP Galvanized Wire | Wire Diamenter: | 5.0mm/4.0mm |
|---|---|---|---|
| Hole Size: | 3"*3" 76x76mm | Sureface Treatment: | Hot Dipped Galvanized |
| Application: | Army Military And River Pretection | Geotextile: | 300gsm Sand Color |
| Spring: | 4.0mm | Color: | Green, Beige, White |
| High Light: | 4mm bastion barrier,mil 10 bastion barrier,military barrier mil 10 |
||
Mil 10 Military Edge Protection Wall Hesco Barrier Bastion Fence For Sale

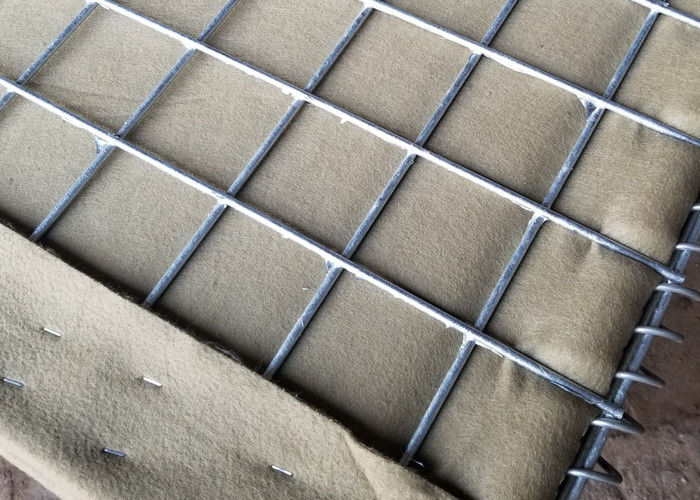

The hesco barrier is manufactured from welded zinc-aluminum coated steel wire mesh
and jointed with vertical, helical-coil joints.
The units are lined with a heavy-duty non-woven polypropylene geotextile.
When jioned and filled, the system can be used to create of exceptional strength and structural integrity.
SHUXIN company had been produce welded wire mesh products hesco barriers more than 15 years.
our products been supplied many countries's department of defense. and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
Brief Introduction for Usage method:
1. Usually the HESCO Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin
3. Full Fill the sand and earth in it and compaction
4. If you want more High and Wide of it, You can stack the HESCO Barrier on each other.
| Product Name | Hesco Barrier Bastion Welded Gabion Box Explosion-Proof Wall |
| Material | Hot-dipped Galvanized Steel Wire,Galfan Wire(Zinc-Aluminum Steel Wire) |
| Wire Diameter | 4mm,5mm |
| Spring Diameter | 4mm |
| Mesh Hole | 3’’*3’’ or 75mm*75mm |
| Panel Size | 0.61m*0.61m,1m*1m,1.06m*1.37m,2.21m*2.13m,etc. |
| Geotextile | Usually 300g/m,other requirement can be customized. |
| Finish |
Hot-dipped Galvanized,Galfan Coated. |
History of development for Military HESCO Bastion in Shuxin Factory:
1. We found HESCO Barrier in the early 2008, and the first cooperated Company is Located In Guangzhou,China, One trading company. They found the HESCO Barrier for Afghanistan Army.From that on, We knew more and Special on it.
2. In order to supply high quality HESCO Barrier to our customers (Because It involves security issues), We Buy the most advanced Equipment for it, from now on, We do not have quality problem any all.
3. As the development of HESCO Barrier, It has a lot of usage, not only for Military, also for Flood and homemade protection. So we have more and more orders about it, Most of them for big tender and project.
The Size Sheet for Military HESCO Barrier:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
How to Install hesco barrier?
1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones,.
