Product Details:
|
Product Name: | ISO EU CE Defensive Barrier Wall For Shooting Range, Welded Bastion Military Barrier Sand Wall | Material: | Hot-dip Galvanized Wire, Galfan Coated Wire |
---|---|---|---|
Application: | Shooting Range,Military Barrier,Retaining Wall | Aperture: | 50x50mm,75x75mm,76.2×76.2mm(standard) |
Cell: | 1*1*1m,1*1*2m,1*1*5m | Geotextile: | 300gsm ,Green/Sand Color |
High Light: | shooting range defence barriers,ce defence barriers,iso military hesco barriers |
ISO EU CE Defensive Barrier Wall For Shooting Range, Welded Bastion Military Barrier Sand Wall
As the name implies, Military Barrier was originally mainly used for military, military protection, military fortifications, explosion-proof walls, etc. It is made of foldable welded gabion net and ultraviolet protection heavy geotextile lining. The common surface treatment is hot dip galvanizing before welding, welding after galvanizing and Galfan coating. They all have a long service life. It is widely used in Iraq, Afghanistan and Africa.
Quick View of Military Barrier:

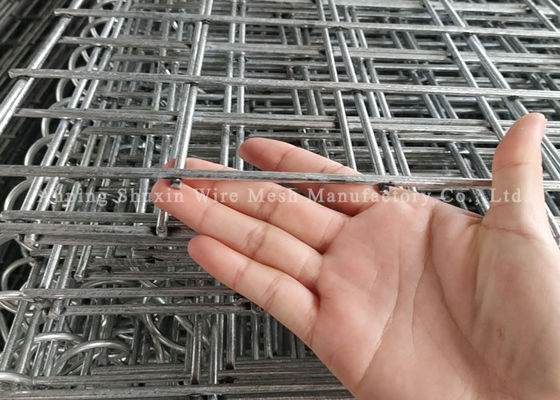

Material : Low-carbon steel wire

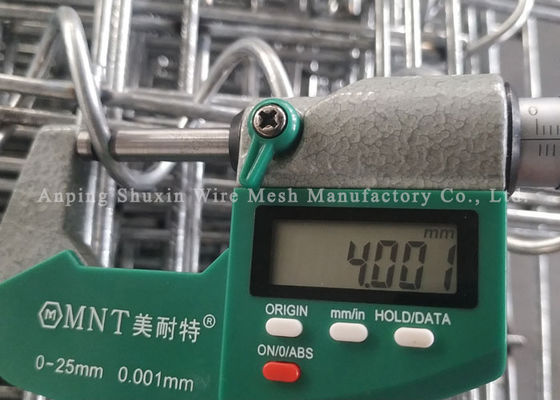

Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Size : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
Advantages of Military Barrier:
1. Removable It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair If a part is damaged, throw it away and connect it with a new one.
Military Barrier Specification
Model | Height | Width | Length | Internal Cells |
SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Barriers can be built to any required length and to any height. The unique joining system allows the user great flexibility in configurations and requirements. One of the key advantages of the system is that any readily available infill material can be utilised. Sand, rubble, rocks, soil, concrete and even snow have been successfully used.
Rapid construction is another key feature of the product. A typical wall of units equivalent to approximately 1500 sandbags, can be erected and filled by two men and a single common loader in less than twenty minutes. An equivalent wall constructed of sandbags would take 10 men 7 hours to build.
Military Barriers Application:

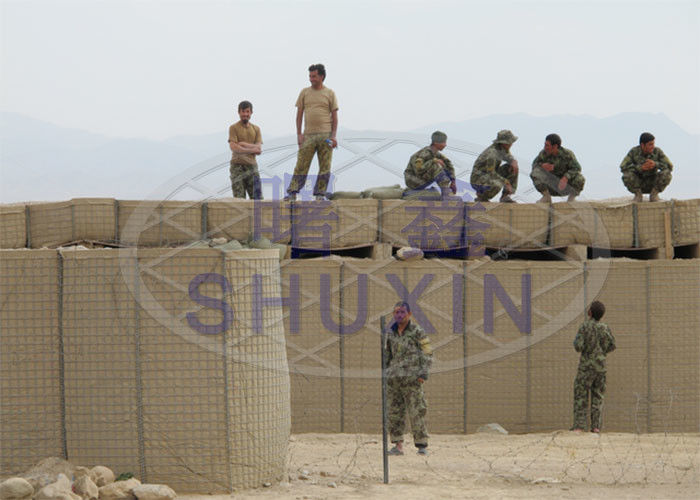

1. Military fortifications Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.
2. Shooting range Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.
3. Flood control Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.
