Stone Filled Gabion Wire Mesh Boxes Galvanized Welded Craft ISO Certification

Stone Filled Gabion Wire Mesh Boxes Galvanized Welded Craft ISO Certification
Stone Filled Gabion Wire Mesh Boxes Galvanized Welded Craft ISO Certification Stone Filled Gabion Wire Mesh Boxes Galvanized Welded Craft ISO Certification

Large Image :  Stone Filled Gabion Wire Mesh Boxes Galvanized Welded Craft ISO Certification

Product Details:
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: GABION 2
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: Negotiated
Packaging Details: pallet
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per week

Stone Filled Gabion Wire Mesh Boxes Galvanized Welded Craft ISO Certification

Description
Material: Q195 Steel Wire Mesh Opening: 50mm X 50mm 80mmX80mm
Surface: Hot Dipped Galvanized Life Duration: ≥ 25 Years
Warranty: ≥ 3 Years Hole Shape: Square
High Light:

retaining wall gabion cages

,

galvanized wall basket

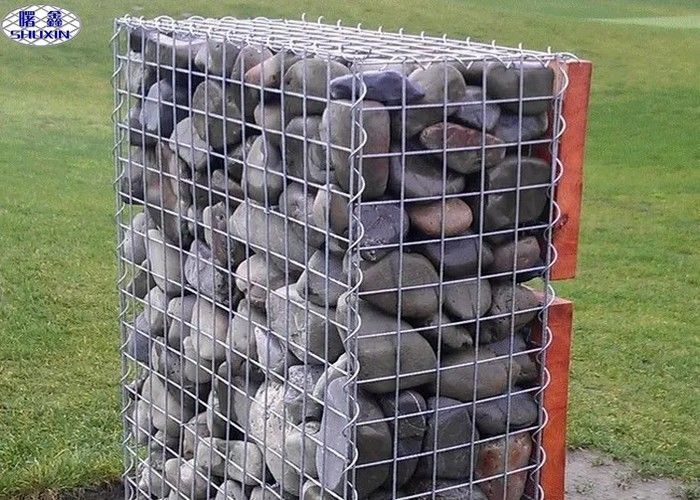

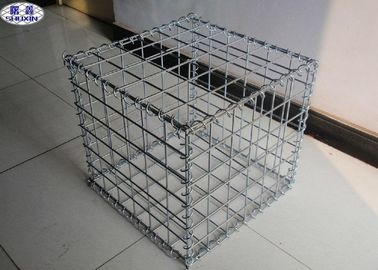

                Galvanized Welded Wire Mesh Gabions Container Box Filled Stones



Welded mesh gabion box is widely used in retaining wall structure, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures.
Welded gabion box is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Gabion meshes are designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.

Stone Filled Gabion Wire Mesh Boxes Galvanized Welded Craft ISO Certification 0

  • Material:Low Carbon steel wire
  • Type:Woven mesh
  • MOQ:20 sets
  • Surface Treatment: Electro galvanized or Hot dip galvanized, PVC coated
  • Technique: weaving or welded
  • Usage: Used for garden,road,playground,park etc
  • Packaging Details:
    Packed with plastic film then on the pallets and then in wooden box
  • Delivery Detail:10-15 days after received
    your deposit

Welded Mesh Gabions Specification:



Our Products Gabion box & Gabions & Rock gabions
Wire Diameter 2.0 mm - 4.0 mm
Mesh size 60*80mm, 80*100mm, 80*120mm, 90*110mm
Box size 1m*1m*1m:2m*1m*1m;3m*1m*1m;4m*1m*1m
Surface treatment PVC coated, electro or hot dipped galvanized
Characteristics

(1)It is easy to work,bright color, easy to maintain.

(2)Difficult to corrosion, long life expectancy.

(3)uniform mesh,flat surface,high quality.

Packing 1.LCL: packed with plastic film then on the pallets
2.FCL: Nude packing
3.Other special package according to customers' requirements.
Payment Terms T/T( 30% deposit , 70% balance against BL copy ) ,or L/C, Paypal, Western Union,MoneyGram, Credit Card ,OA



Welded mesh gabions advantages:



  • Blends easily and harmoniously with the natural surroundings.
  • Low cost alternative to concrete or masonry structures.
  • Very high resistance to natural forces due to better tensile strength.
  • Can withstand any unpredictable movement or settlement without loss of stability.
  • Simple and speedy installation, making it cost effective.
  • Quality finish and appearance is more aesthetically pleasing.
  • More rigid than woven mesh resulting in a more uniform finish when built.
  • Quicker and cheaper to install than Woven Mesh gabions because no pre-stretching required.
  • Special gabions sizes and mesh such as gabions with 4mm front mesh and 3mm mesh else can be available.



How to install welded mesh gabions box?



Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.

Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the

line and cross wires on the front and side faces. None are needed in interior cells.

Step 4. Gabion box filled with graded stone by hand or with a shovel.

Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.

Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with

spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.



FAQ :



1. Which port can you support?

Answer: Tianjin port or any other China port you need. If provided destination port, CFR and CIF can be quoted for your reference.



2. What's your delivery time of your products?

Answer: Usually it takes about 20-25 days after receiving the advance payment to send out the goods by sea or air.



3. What about the terms of payment?

Answer: Most customers choose 30%TT advanced payment, balance against copy of BL.Other terms of payments ways like LC.

For small orders, paypal and westunion also available.



4. What's your Minimum order quantity(MOQ) of your product?

Answer: Most customers choose 1x20"GP as trial order. Small orders are also accepted.

Stone Filled Gabion Wire Mesh Boxes Galvanized Welded Craft ISO Certification 1
