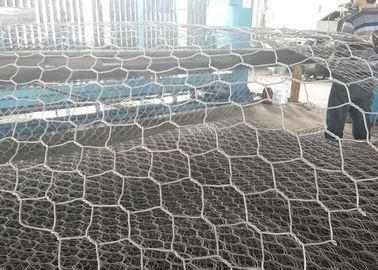

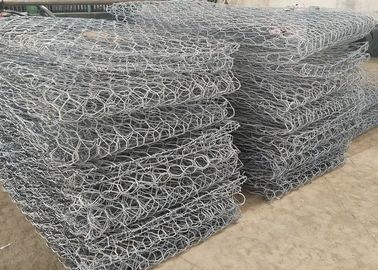

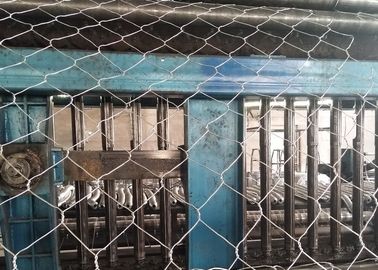

Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket 2.0-4.0mm Wire Guage

Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket 2.0-4.0mm Wire Guage
Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket 2.0-4.0mm Wire Guage Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket 2.0-4.0mm Wire Guage Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket 2.0-4.0mm Wire Guage Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket 2.0-4.0mm Wire Guage

Large Image :  Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket 2.0-4.0mm Wire Guage Get Best Price

Product Details:

Place of Origin: HB
Brand Name: SHUXIN
Certification: ISO,CE,SGS,COC,PVOC,SONCAP
Model Number: SX-GC211

Payment & Shipping Terms:

Minimum Order Quantity: 1000 square meter
Price: Negotiated
Packaging Details: In Bundle
Delivery Time: 5-8 business days
Payment Terms: T/T, Western Union, MoneyGram,L/C, Paypal
Supply Ability: 10000 Square Meter
Detailed Product Description
Features: Fast Producing, Easy Installation Material: Hot Dipped Galvanized Wire
Mesh Aperture: 70*90mm, 80*100mm,100*120mm, 110*130mm Hole Shape: Hexagonal Gabion Mesh Hole
Wire Guage: 2.0-4.0mm Surface Treatment: Hot Dipped Galvanized After Weaving
Application: Retaining Wall, Road Protection Color: Green, Grey, And Also Customized
Size: 2*1*1M, 1*1*1M, 6*2*0.3M Packing: 50-100 PCS Gabion Cage Per Pallet
High Light:

retaining wall gabion cages

,

gabion wall baskets

Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket

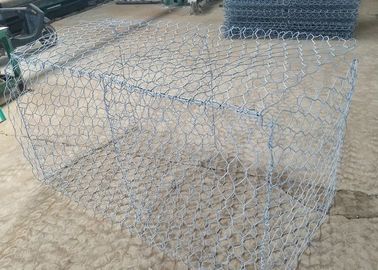

Gabions are baskets made of 8x10 double twisted steel woven wire mesh, as per ASTM A975-97. Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects.



The steel wire used in the manufacture of the gabion is heavily Galfan coated soft temper steel. A PVC coating is then applied to provide added protection for use in polluted environments where soils or water are acidic: in salt or fresh water, or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.50 mm.



The gabion is divided into cells by means of diaphragms positioned at approximately 1m centers. In order to reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter.



Wire of Gabion Basket:



All tests on wire must be performed prior to manufacturing the mesh.

1. Tensile strength: the wire used for the manufacture of gabions shall have a tensile strength between 372-470 according to ASTM A856. Wire tolerances are in accordance with ASTM A856.

2. Elongation: Elongation shall not be less than 12%, in accordance with ASTM A370-97. Test must be carried out on a sample at least 12 in. (30 cm) long.

3. Galfan coating: All wire shall comply with the requirements of ASTM A975-97, style 3 coating, Galfan and PVC coated steel wire.

4. Adhesion of Galfan: the adhesion of the Galfan coating to the wire shall be such that, when the wire is wrapped six turns around a mandrel having four times the diameter of the wire, it does not flake or crack when rubbing it with the bare fingers, in accordance with ASTM A856.



Specification of Gabion Basket:

Length (M) Width (M) Height (M) Diaphragm Quantity
1 1 1 0
2 1 1 1
3 1 1 2
4 1 1 3
6 1 1 5
2 1 0.5 1
3 1 0.5 2
6 2 0.3 5



Brief Introduction of Gabion Cage Mesh / Gabion Box Wire Diameter:

Mesh Hole PVC Coated Wire (Inner/Outside) Hot Dipped Galvanized Wire Galfan Coated Wire
60*80mm 2.0mm/3.0mm-2.8mm/3.8mm 2.2mm-3.8mm 2.2mm-3.8mm
80*100mm 2.2mm/3.2mm-3.0mm/4.0mm 3.2mm-4.0mm 3.2mm-4.0mm
100*120mm 2.4mm/3.4mm-3.2mm/4.2mm 3.4mm-4.2mm 3.4mm-4.2mm
120*150mm 2.7mm/3.7mm-3.5mm/4.5mm 3.7mm-4.5mm 3.7mm-4.5mm



Hot Dipped Galvanized Woven Hexagonal Wire Mesh Gabion Basket 2.0-4.0mm Wire Guage 0

Application for Lowes Gabion Stone Basket:

  1. Control and guide rivers and floods by Gabion Cage and Gabion Mattres.
  2. Flood discharge dam and diversion dam Protected by Gabion Box.
  3. Rockfall protection used by Stone filled Gabion Cage.
  4. Preventing water adnd soil erosion;
  5. Bridge protection;
  6. Soild Soil structure;
  7. Coastline Defence;
  8. Port Works;
  9. Retaining Wall;
  10. Road Protection.
