Product Details:
|
| Material: | Steel Wire | Mesh Wire: | 5.0 Mm |
|---|---|---|---|
| Height: | 4'6" | Surface Treatment: | Heavy Hot Dipped Galvanized |
| Geotextile: | 300 Gsm Sand Color,Green Color | Life Duration: | 25 Years |
| Dimesion: | Mil 3 | Geotextile Color: | Beige-sand Color |
| High Light: | mil 3 hesco bastion barrier system,76.2×76.2mm hesco bastion barrier system,sand filled hesco bastion barrier system |
||

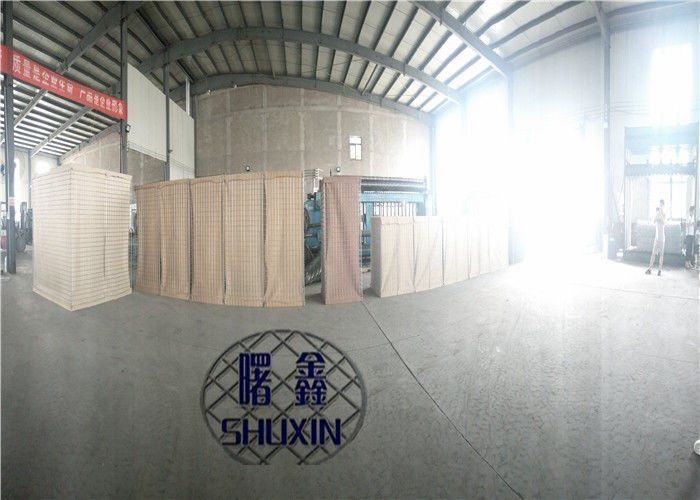

76.2×76.2mm 4'6"Height Military Gabion Basket Hesco Barrier With Geotextile Filter Fabric
1. Introduction :
Gabion Basket Hesco Barrier Military Gabion Box is gabion box. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
Gabion bastions also known as HESCO Barrier Rock basket retaining wall, hesco barrier, flood control barrier, etc. which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety.
SHUXIN Company military bastion do a good Job in Military area, flood controlling now. Now had already went to Front Line of Battle-filed to act as a good protector for the soldiers.
Specifications of Gabion Basket Hesco Barrier as follows :
1) wire diameter: 4mm-5mm
2) Wire mesh hole: 3''x3''
3) Panel size: 0.61x0.61m, 1.06x1.37m, 2.13x2.21m etc., other sizes can be produced as requested.
4) Geotextile: In non-woven geotextile, color can be white, beige-sand color or OEM.
2. Material:
It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
3. Finish: electro galvanized,hot dipped galvanized,galfan coated,
Gabion Basket Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Gabion Basket Hesco Barrier Use Deatils:
Unpack---Pull out and set up-----Connect together---- Fill and compact----Finished
Features :
Production Process
Loading container:
