Product Details:
|
| Components: | Gabion Mesh,Spring, Joint Pin, Geotextile Fabric | Sureface Treatment: | Heavy Hot Dipped Galvanized |
|---|---|---|---|
| Mesh Hole: | 3" X 3" | Wire: | 5.0mm |
| Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
| Type: | Welded Wire Mesh | Style: | Mil 1 -- Mil 10 |
| Height: | 5'6" | Mil: | 2 |
| High Light: | gabion basket defensive barrier,welded gabion defensive barrier,5mm wire defensive barrier |
||
Height5'6" Bastion Wall Used Hesco Barriers Defensive Barrier Welded Gabion Basket By ISO
( 12 years of export experience )

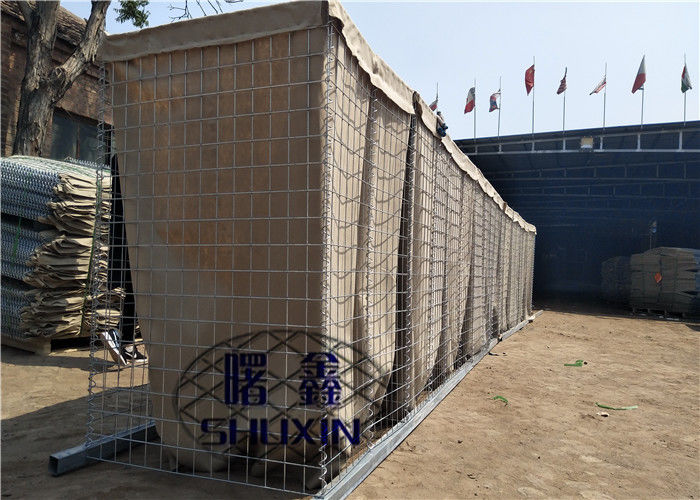

Introduction of Hesco Barriers Defensive Barrier :
The Hesco Barriers Defensive Barrier is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against beige hesco geotextile/Explosion-proof wall hesco mesh/Oman defensive barrier 2.21x2.13x27.74m
The Concertainer MIL hesco barrier unit is a multi-cellular barrier system manufactured from welded Zinc-Aluminium coated steel mesh or galvanized steel wire mesh and lined with heavy-duty non-woven polypropylene geotextile.
1. Hesco Barriers Defensive Barrier
A geotextile lined unit for general use as an earth filled barrier .
The units are suiltable for filling with earth ,sand,gravel,crushed rock and other granular materials.
The unit fulfills a wide range of users,including the contruction of protective walls and barriers.
2. Hesco Barriers Defensive BarrierSpecification:
1) Material: Steel wire, galvanized wire
2) Wire diameter: 4mm-5mm
3) Hole: 3''x3''
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
5) Geotextile: heavy duty geotextile,non-woven,permeable, polypropulene farbric,
beige or green color,
|
Material : All wires conform to BS EN10218-2012, Zinc-Alunminum coating are to BS EN 10244-2:2009 Geotextile: heavy duty geotextile, non-woven,permeable,polypropulene farbric Geotextile color: beige or green color
Mesh Hole: 3” X 3” Unit Size : 0.61m x 0.61m x 3.05m Cells: 1 unit = 5 cells
|
||||
| all dimensions and weight are nominal ,Diagrams and products are for illustrative purpose only. |
The Common Specification of Hesco Barriers Defensive Barrier as followed:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
Hesco Barriers Defensive Barrier Application:
