Product Details:
|
| Material: | HDP Galvanized Wire | Wire Diamenter: | 5.0mm / 4.0mm |
|---|---|---|---|
| Hole Size: | 3x3" (7.62*7.62 Cm) | Sureface Treatment: | Hot Dipped Galvanized |
| Application: | Army Military And River Pretection | Geotextile: | 300gsm ,Sand Color |
| Spring: | 4.0mm | Color: | Green, Brown,Beige , |
| High Light: | bunker guard post sand filled barriers,bunker military sand filled barriers,sand filled barriers 300gsm |
||
Military Sand Barrier for Bunker, Guard Post, HESCO defensive barriers lined with geotextile In Ghana
Military HESCO Defensive Barrier Specifications:

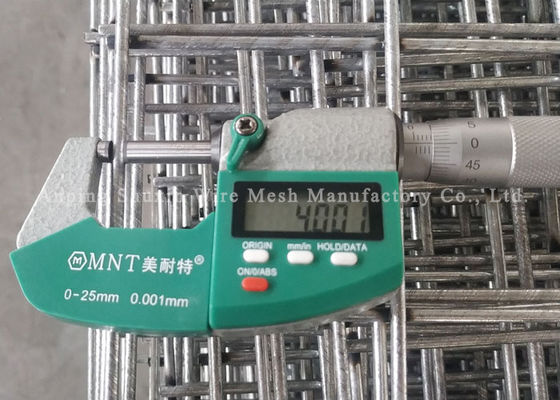

1. Wire diameter: 4-5mm
2. Mesh size: 3x3 inches (7.62*7.62 cm)
3. Panel Size: 13 species
4. Application: used for any security protection and sudden attack
5. Geotextiles: Heavy Non-woven Polypropylene
6. Color: gray, military green, sand, etc
7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire
8. Packaging: Packaging with shrink film or pallet
SHUXIN company had been produce welded wire mesh products hesco barriers more than 15 years.
our products been supplied many countries's department of defense. and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
The Dimension / Specification for Military HESCO Defensive Barrier:
|
Product Name |
Hesco Barrier |
|
Product Type |
Welded Mesh |
|
Material |
Galvanized Steel Wire or Galfan/zinc-5% Aluminum Wire |
|
Wire Diameter |
4.0, 5.0mm, Spring Wire Diameter: 4mm |
|
Geotextile |
250g-400g |
|
Geotextile colour |
Sand clolor, Brown, Gray,and Military Green. |
|
Mesh hole |
76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm |
Brief Introduction:
Wire diameter: 3mm, 4mm, 5mm
Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, galfan coated after welded
Packing: wrapped with shrink film or packed in pallet.
History of development for Military HESCO Defensive Barriers in Shuxin Factory:
1. We found HESCO Barrier in the early 2008, and the first cooperated Company is Located In Guangzhou,China, One trading company. They found the HESCO Barrier for Afghanistan Army.From that on, We knew more and Special on it.
2. In order to supply high quality HESCO Barrier to our customers (Because It involves security issues), We Buy the most advanced Equipment for it, from now on, We do not have quality problem any all.
3. As the development of HESCO Barrier, It has a lot of usage, not only for Military, also for Flood and homemade protection. So we have more and more orders about it, Most of them for big tender and project.
Details of Military Sand Barrier for Bunker, Guard Post, HESCO defensive barriers:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) |
6 cells |
Application of reticulated gabion box:
