Product Details:
|
| Wire Gauge: | 2.0mm-4.0mm | Aperture: | 80*100mm |
|---|---|---|---|
| Lacing Wire: | 2.2mm | Surface Treatment: | Green Pvc Coated |
| Mesh Shape: | Weave Hexagonal | Warranty: | ≥ 3 Years |
| Package: | Wooden Pallet | Moq: | 100 Pcs |
| High Light: | River Bank Protection Filling Gabion Baskets,Heavily Galvanized Filling Gabion Baskets,4.0mm Gabion Stone Wall |
||

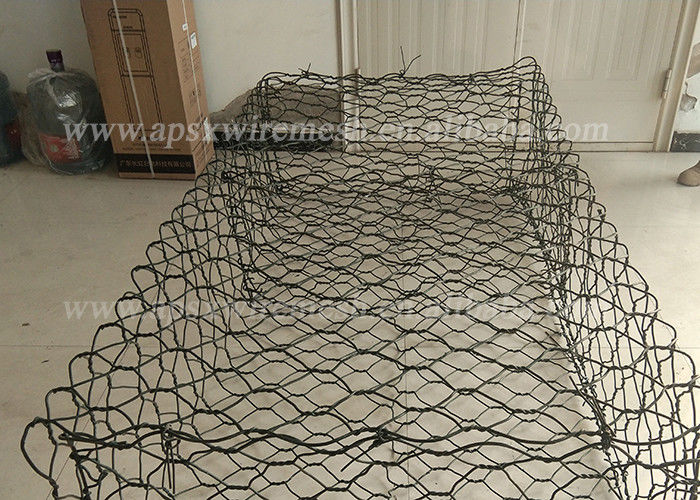

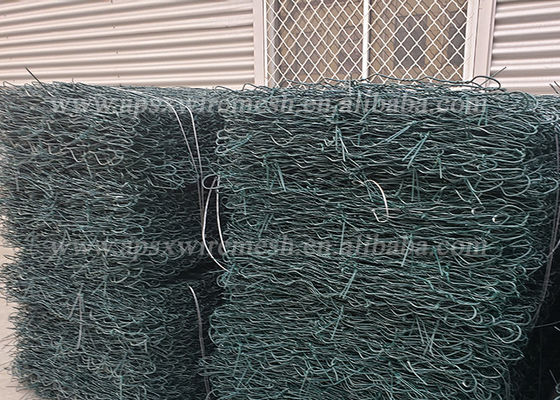

Heavily Galvanized Double Twisted Hexagonal Gabion Basket For River Bank Protection
After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.
Product name: gabion wall cage
Gabion box/gabion basket is made of galvanized wire/ZnAl(Galfan)coated wire/PVC or PE coated wires,the mesh is hexagonal shape.

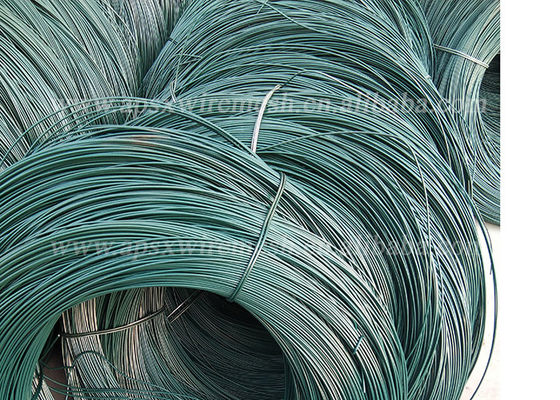

Gabion basket material : galvanized wire,ZnAl(Galfan) coated wire/PVC or PE coated wire
Gabion basket wire diameter : 2.0mm,2.2mm,2.7mm,3.05mm etc.
Gabion basket sizes: 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion size: 60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion surface treatment: hot dip galvanized,aluminum alloy(galfan),PVC coated etc.
Gabion basket application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
Gabion Cage Applications:
• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road
Why choose our gabion box ?
Fast delivery
Quick quote
Strict quality inspection standards
Direct factory price
Strict quality control system
Rich experience
Good performance
Decorative effect
Easy installation
Strong and special technique
| Hexagonal Wire Mesh Gabion Cage Specification | |||
| Length*Width*Height | 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m or Customized | ||
| Mesh Size | 60*80; 80*100; 100*120 as standard, or customized | ||
| Wire Diameter | 2.00mm to 4.0m or customized | ||
| Surface Finish | Electric Galvanized Hot Dipped Galvanized Galfan Coated PVC Coated |
||
| Weaving | Double Twist | ||
| PVC Coated Gabion Box Specification | |||
| Opening (mm) |
Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coate)/ Inner/Outside(mm) | |
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | |
The packing:
woven bags of the above and bottom,high quality package or as customers requested In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. according to customers requirement.
The Shipping:
Production time :15-20 days after received your payments Transportation way : by see or by air Port: XinGang TianJin or as your order
