Product Details:
|
| Product Name: | Gabion Basket | Material: | Zn-Al(Galfan) Coated Wire/PVC Coated Wire |
|---|---|---|---|
| Wire Diameter: | 2.7-3.4 Mm | Application: | Construction Wire Mesh,Cages,Protecting Mesh |
| Gabion Size: | 2*1*1 M /1*1*1 M | Hole Size: | 8*10 Cm /10*12 Cm |
| Package: | Wooden Pallet | MOQ: | 100 SET |
| High Light: | 4x1x1m metal gabion baskets,hot dipped galvanized metal gabion baskets,gabion baskets 4m x 1m x 1m |
||
4x1x1m Hot Dipped Galvanized Wire Mesh Gabion Basket With Factory Price

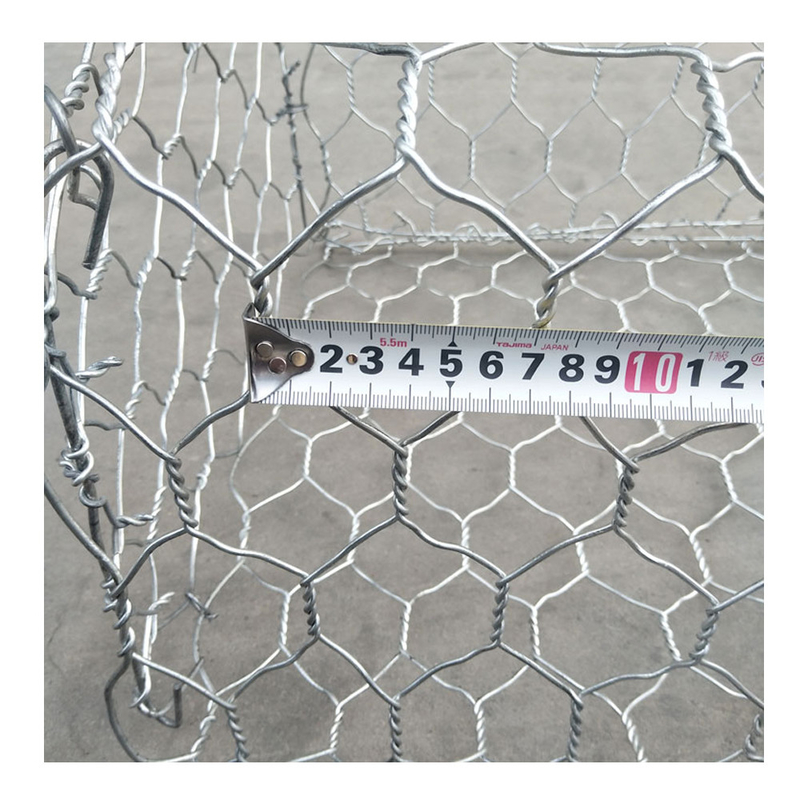

Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped structure made by the net is the stone cage.
The diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the metal coating weight is generally higher than 245g/m2. The diameter of the edge wire of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part of the double wire shall not be less than 50mm.
| Weaving type | Feature | Material |
Mesh size
|
Wire Gauge
|
Processing Service |
| Durable Three Normal Twist | Corrosion Resistance | Galvanized Iron Wire |
80x100 cm 100x120cm |
2.7mm-3.5mm | Bending Cutting |
| Gabion basket | |
| Mesh wire | 2.0mm-4.0mm |
| Mesh size | 60*80mm, 80*100mm, 90*110mm, 100*120mm, 120*150mm |
| Selvedge wire | thicker 0.5mm-1.0mm than mesh wire |
| Tie wire | 2.2mm, 2.5mm |
| Gabion size | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment | high zinc coated, HD galvanized, PVC coated |

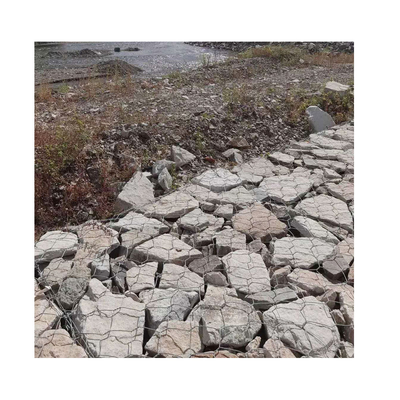

Gabion basket application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wie
The packing:
woven bags of the above and bottom,high quality package or as customers requested In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. according to customers requirement.
The Shipping:
Production time :15-20 days after received your payments Transportation way : by see or by air Port: XinGang TianJin or as your order
After the production of gabion cage is completed, in order to save volume, compression packaging can be bundled.
Less transport freight. It can be folded together for transport and further installation.
We have been producing gabion nets for 15 years, our factory had been verified onsite by world leading inspection company SGS GROUP and we have stricter requirements for the entire production management system, and we have passed ISO inspection systems.This is our workshop, we have 7 machines with a daily output of 5000 square meters,

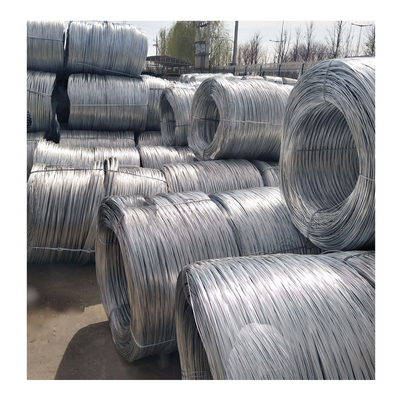

Galvanized wire and PVC wire in the raw material area can be produced according to your requirements.
