Product Details:
|
| Material: | HDP Galvanized Wire | Diameter Of Mesh: | 4.0mm |
|---|---|---|---|
| Mesh Hole: | 3" | Color: | Beige Or Military Green |
| Geotextile Weight: | 250 G/㎡ | Processing Service: | Welding, Cutting |
| High Light: | collapsible hesco barriers,mil 10 hesco barriers,mil 10 defensive barriers |
||

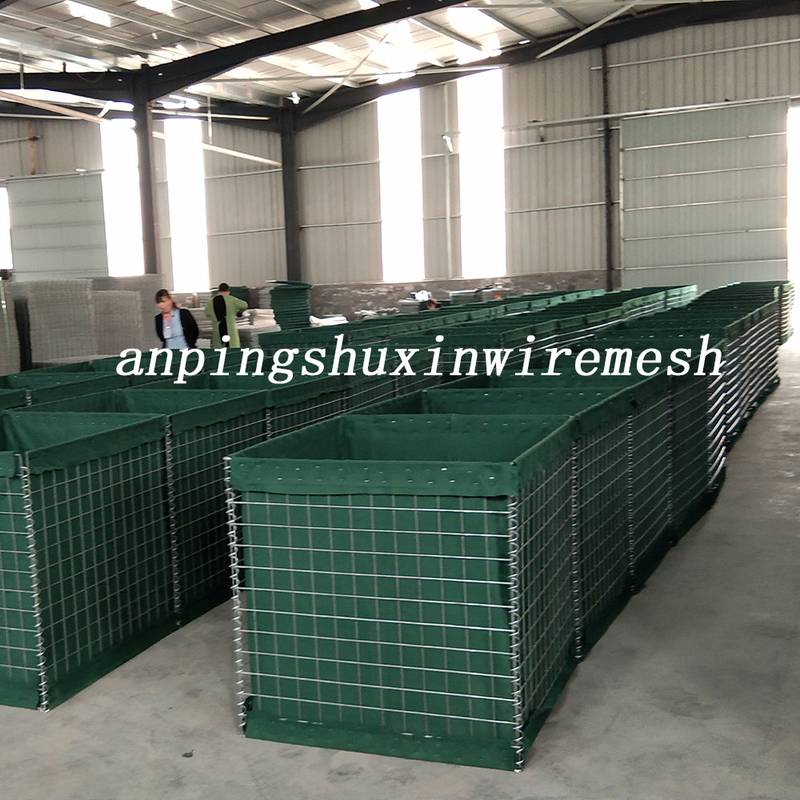

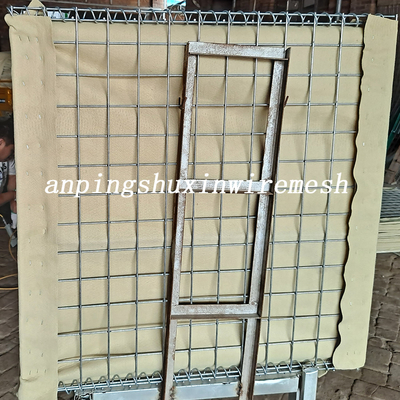

Collapsible 4mm Military Edge Protection Wall Hesco Mil 10 Bastion Barrier Fence
Defensive Barrier Wall can be widely used in surrounding security and defensive walls, equipment revetments, explosives and contraband search areas, ammunition compounds, personnel and material bunkers, observation points, defensive shooting positions, highway checkpoints, border checkpoints.
Specification of Defensive Barrier Wall
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
| Type | Welded Mesh |
| Material | Low-Carbon Iron Wire, Low carbon iron wire |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Geotextile Color | Grey, military green, beige, etc |
| Surface Treatment | Electro galvanized, hot dipped galvanized, galfan wire |
| Package | Wooden pallet |
| Application | it is widely used for military fortification and flood control |
| Delivery Time | About 15 days |
| Payment Term | can send deposit in advance, Make up the balance before |
Application for Welded Defensive Barriers:
Protection of existing structures, highway traffic management, flood control, river channels, emergency flood control deployment, erosion control, retaining walls
Advantages of Welded Defensive Barrier:
1. HESCO Barrier wall characteristics
2. Easy to handle and install
3. High strength and impact resistance
4. Long life, normal use
5. It can be filled with sand, cement, stones, and soil.
