Product Details:
|
| Features: | High Corrosion Resistance, High Strength, Ductility | Weave Style: | Hexagonal Double Twisted Weaving |
|---|---|---|---|
| Color: | Sliver，Green，Gray | Surface Treatment: | Hot Dipped Galvanized, PVC Coated |
| Mesh Wire: | 2.0mm-4.0mm | Selvedge Wire: | 3.4mm, 3.8mm |
| Lacing Wire: | Common Use 2.2mm | Zinc Coating: | 240-260g/m2 |
| Gabion Box Size: | 1*1*1m / 1*1*2m/1*1*3m/1*1*4m | Application: | Earth-Retaining Wall, River Bank Gabion Protection |
| High Light: | 2*1*1m pvc coated gabion box,hexagonal pvc coated gabion box,river bank pvc gabion box |
||

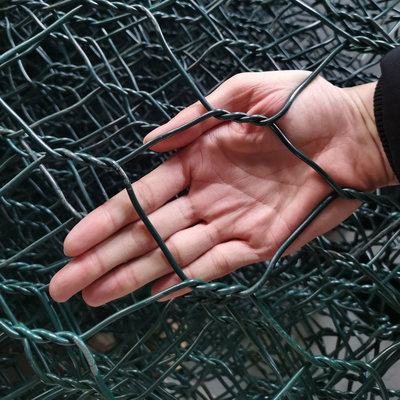

PVC Coated Gabion Basket 2*1*1m Hexagonal Woven Gabion Mattress for River Bank
Gabion is PVC coatings on zinc-coated metal wire fabric containers with variable sizes that fill rocks to form permanent structures. Green gabion mattress (Fibromat is also called gabion mattress system) is a great soil stabilization system, which can be used for slope erosion control, toe and river bank protection, to maximize the permeability of the structure, while providing reinforcement and grassland construction.
Gabion mattresses are used as retaining walls to provide various prevention and protection projects, such as landslide prevention, erosion and erosion protection, as well as hydraulic and coastal protection for various types of rivers, seas and river courses. This gabion mattress system is made of a specially designed composite material, which maximizes its performance through a three-stage vegetation process from non-vegetation to vegetation establishment to vegetation maturation.
| Mesh wire | 2.0mm-4.0mm |
| Mesh size | 60*80mm,80*100mm,100*120mm |
| Selvedge wire | Thicker 0.5mm-1.0mm than mesh wire |
| Tie wire | Common use 2.2mm |
| Gabion size | 1*1*1m,2*1*1m,3*1*1m,4*1*1m,6*2*0.3m |
| Surface treatment | Hot dip galvanized, PVC coated |
| Material | Low Carbon Steel Wire, Q195,Q235 |
| Process | Weave By Machine |
| Usage | Slope support, foundation pit support |
| Features |
High corrosion resistance, high strength, ductility |
| Tensile Strength | 38kg/m2 |
Application of gabion baskets:
The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.
●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.
●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.
Retaining Gabion Advantages:
1). Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate of up to 6m / s .
3). This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.
