Product Details:
|
| Mesh Size: | 3" X 3"，（7.62*7.62cm） | Accessories: | Spring, Joint Pin, Geotextile |
|---|---|---|---|
| Geotextile: | 300 G/m2,waterproof, Good Penetration | Application: | Military Barriers，River Pretection |
| Feature: | Easy To Assemble,Good Permeability. | Raw Materials: | Hot Dipped Galvanized |
| High Light: | welded military sand wall hesco barrier,square military sand wall hesco barrier,3x3 inches hesco bastion barrier |
||
Portable Welded Square 3x3 inches Military Barrier Defensive Stone Box Barriers In Ghana
Military Barrier Description:
Military Gabion Barrier Bastion Sand Wall is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.

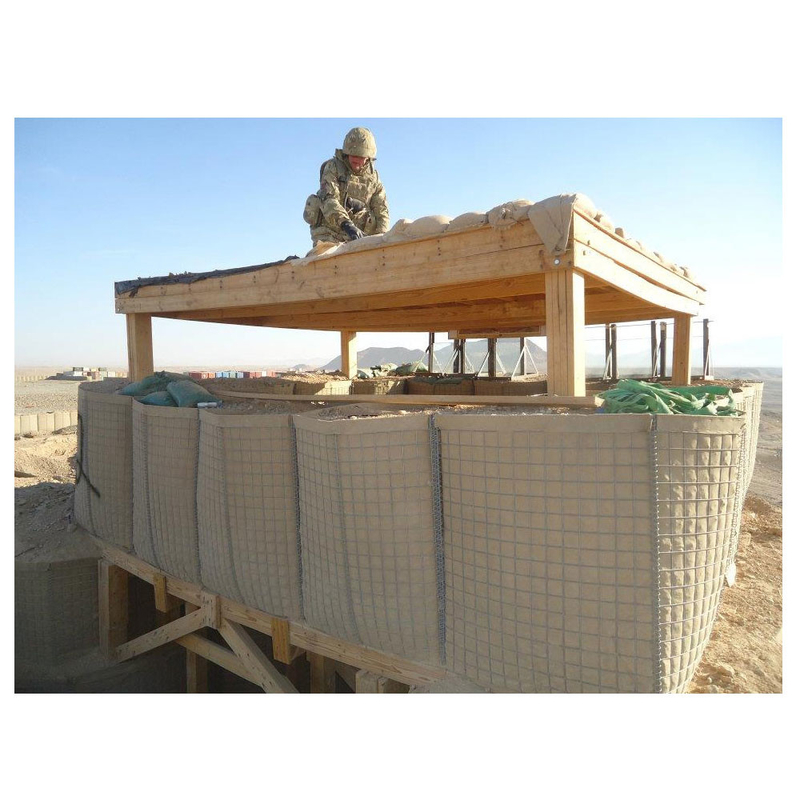

Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.
As the name implies, the military defensive barrier was originally mainly used for military, military protection, military fortifications, explosion-proof walls, etc. It is made of foldable welded gabion net and ultraviolet protection heavy geotextile lining. The common surface treatment is hot dip galvanizing before welding, welding after galvanizing and Galfan coating. They all have a long service life. It is widely used in Iraq, Afghanistan and Africa.
Details of Military Barrier:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Advantages of Military Barrier:
1. Removable

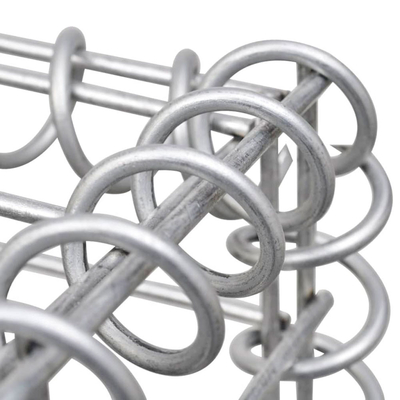

It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.
2. Anticorrosion
The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.
3. Easy installation
When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement
When you want to use it in another place, just move it and it can be used many times.
5. Easy to repair
If a part is damaged, throw it away and connect it with a new one.
Defensive barrier characteristics:
Easy to handle and install
High strength and impact resistance
Long service life and normal use
Can be filled with sand, cement, stone, soil.
Our services:
Selected high-quality materials and processes follow strict international standards.
A team of technical experts who produce high-quality products. Products that have been certified or inspected for the third time can be provided as required.
Analyze or suggest the best transportation plan to save costs. Feedback or reply to you in a timely manner through excellent customer service.
Provide OEM services
One-stop sales team delivers goods quickly
Our promise: Professionalism, Efficiency, Faithful
