Product Details:
|
| Material: | HDP Galvanized Wire | Wire Diamenter: | 5.0mm/4.0mm |
|---|---|---|---|
| Hole Size: | 3"*3" 76x76mm | Sureface Treatment: | Hot Dipped Galvanized |
| Application: | Army Military And River Pretection | Geotextile: | 300gsm Sand Color |
| Spring: | 4.0mm | Color: | Green, Beige, White |
| High Light: | collapsible military barrier,3x3 inch hole military barrier,4mm hesco military |
||

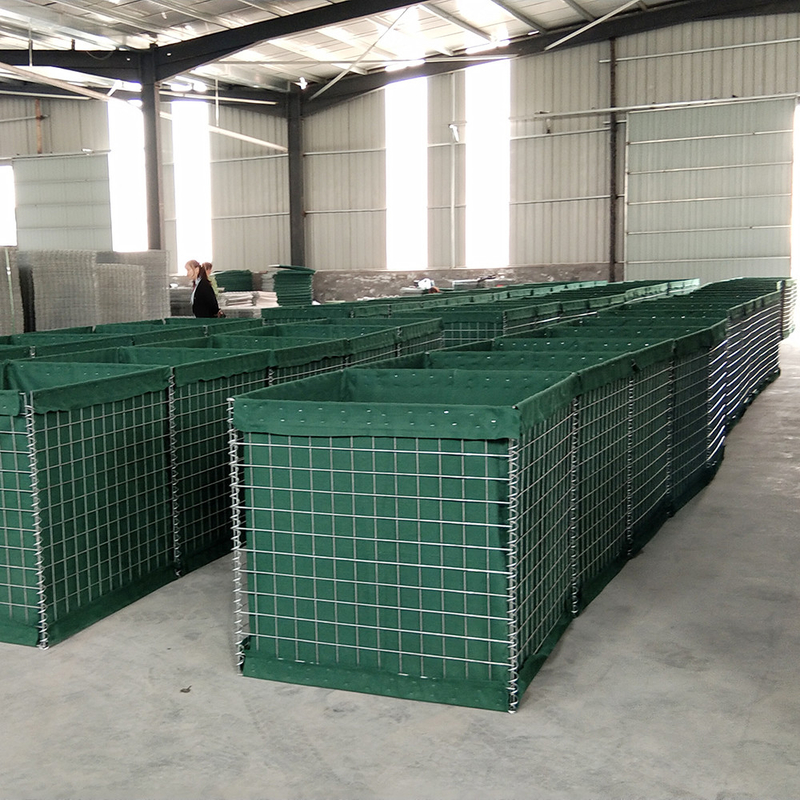

Collapsible 4mm Hesco Barriers Military Edge Protection Wall Mil 10 Gabion For Sale
The Military Gabion Barrier Bastion Sand Wall come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Whether used as a protective barrier or to define boundaries, Military Gabion Barrier Bastion Sand Wall have been employed to safeguard equipment, facilities, vehicles, personnel and critical assets in a variety of operations such as military, peacekeeping, humanitarian and civilian.
Brief Introduction for Usage method:
1. Usually the HESCO Barriers packed in Pallet and 5 cells per set,After getting it, make it stand.
2. To Pull them, make them opened and in a line to achieve the length you want, If more cells use Joint Pin
3. Full Fill the sand and earth in it and compaction
4. If you want more High and Wide of it, You can stack the HESCO Barrier on each other.
| Product Name | Hesco Barrier Bastion Welded Gabion Box Explosion-Proof Wall |

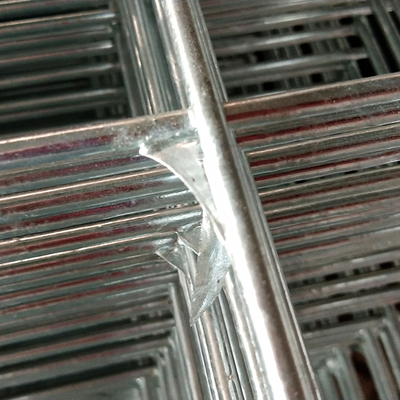

| Material | Hot-dipped Galvanized Steel Wire,Galfan Wire(Zinc-Aluminum Steel Wire) |
| Wire Diameter | 4mm,5mm |
| Spring Diameter | 4mm |
| Mesh Hole | 3’’*3’’ or 75mm*75mm |
| Panel Size | 0.61m*0.61m,1m*1m,1.06m*1.37m,2.21m*2.13m,etc. |
| Geotextile | Usually 300g/m,other requirement can be customized. |
| Finish |
Hot-dipped Galvanized,Galfan Coated. |
Application:
The Detailed Explanation of Application for Barrier:
1. Military Fortifications
Most Army Used Barrier build up a Military Fortifications, Because it can stack on each other, You can change the width and height by your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people use Barrier to build a shooting range, because its High Strength Defense, more safety.
3. Flood Control
We Mentioned above, The Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Barrier as Flood Protection Wall.Even around the hotel they stand up the Barrier for Protection Wall.
Mesh Gabion Box Specification:
1. Wire diameter: 4-5mm
2. Mesh size: 75x75mm,50x50mm
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene; Color:Grey and Military Green,Sand color etc.
5. Finish: hot dipped galvanized, Galfan wire.
The Size Sheet for Military HESCO Barrier:
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
How to Install hesco barrier?
1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones,.
SHUXIN company had been produce welded wire mesh products hesco barriers more than 15 years.
our products been supplied many countries's department of defense. and army force.
such as UAE Jordan, USA,Greece,Saudi Aria, Dubai,Kenya ....
and our factory had been verified onsite by world-leading inspection company SGS Group.
we have CE ISO certification. and we have confidence to become your stable and believable supplier in China.
Welcome inquiry for us about hesco barriers.
