Product Details:
|
| Name: | Gabion Basket | Wire Gauge: | 2.0mm-4.0mm |
|---|---|---|---|
| Aperture: | 80*100mm | Lacing Wire: | 2.2mm |
| Surface Treatment: | Pvc Coated Or Galvanized | Mesh Shape: | Hexagonal Hole |
| Feature: | Anti-corrosion | ||
| High Light: | rust proof hexagonal gabion basket,seawall protection hexagonal gabion basket,rust proof galvanized gabion basket |
||
Rustproof Galvanized Hexagon Gabion Basket Galfan For Seawall Protection
Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

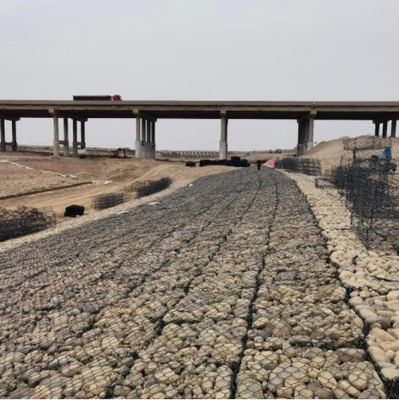

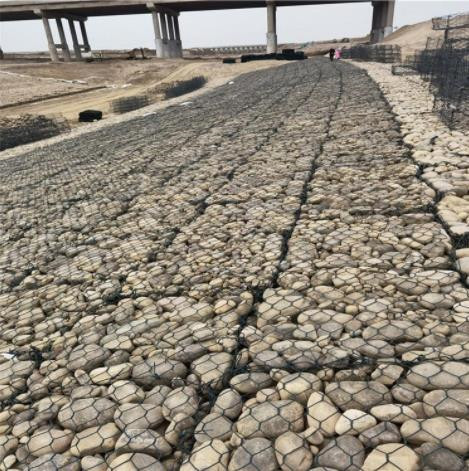

Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
|
Gabion box (mesh size): 80*100mm 100*120mm |
Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 | |
|
Gabion mattress (mesh size): 60*80mm |
Mesh wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire diameter. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
|
special sizes Gabion are available
|
Mesh wire diameter | 2.0~4.0mm |
superior quality,competitive price and considerate service |
| Edge wire diameter | 2.7~4.0mm | ||
| Tie wire diameter | 2.0~2.2mm |
Surface treatment:
Electrical galvanized (zinc coating: 10g/m2), Hot dipped Galvanized: (zinc coating: 300g/m2), Aluminium Alloy, PVC coated (pvc thickness: 1.0mm
