Product Details:
|
| Name: | Gabion Box | Material: | Galvanized Wire, PVC Wire, Galfan Wire |
|---|---|---|---|
| Weave: | Double Twist | Mesh Wire: | 2.5/2.9/3.0/3.3mm |
| Selvage Wire: | 3.6mm | Biding Wire: | 2.2mm |
| Mesh Hole: | 60*80mm, 80*100mm, 100mm*120mm | Gabion Size: | 6*2*0.3m, 2*1*1m, 3*1*1m, 4*1*1m |

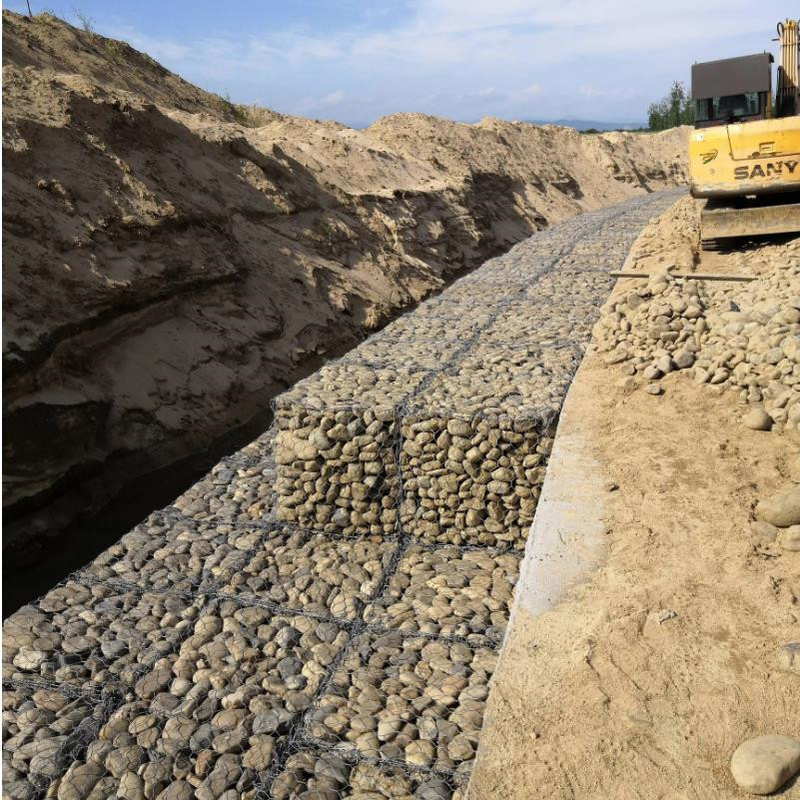

| Warranty: | ≥ 5 Years | Application: | Gabions Retaining Wall, Bank Protection |
| High Light: | 27mm Galvanized Gabion Basket,River Protection Gabion Cage,River Protection Galvanized Gabion Basket |
||

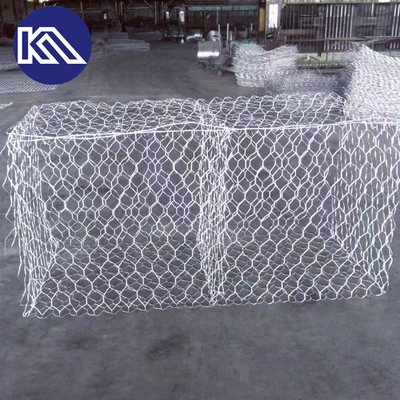

Galvanized 27mm Gabion Basket River Protection Gabion Cage Prices
china gabion supplier 3.0mm 2x1x1m 8*10cm hexagonal stone gabion mesh/3x1x0.5m gabion baskets
The raw material for making gabion mesh is alloy galvanized steel wire, which has high corrosion resistance, about 2-3 times that of ordinary pure galvanized steel wire. Its performance is superior to ordinary galvanized steel wire and electro galvanized steel wire both in outdoor environment and in humid and harsh environment, and the ductility and deformation of alloy galvanized steel wire are very strong, so there is no need to worry about the cracking and falling of zinc layer.
In addition, the metal surface of gabion mesh is treated by thermal spraying process, which is a new type of anti-corrosion material. Compared with pure zinc wire and pure aluminum wire, it has the advantages of strong adhesion, strong wear resistance, good corrosion resistance, and safe and simple construction
It can be produced according to the design requirements of the drawings. Generally, the machine is up to 4m wide and any length. However, the conventional size of Renault pad in China is 6*2*0.3m, mesh: 6*8cm, wire diameter: 2.0mm. Materials: galvanized, galvanized PVC (PVC color is usually gray or green), Galfan commonly known as 5% or 10% zinc aluminum alloy, zinc aluminum alloy coated PVC. Zinc aluminum alloy material is the best quality of these products, and its service life is 70~80 years! The cage size is generally 2*1*1m 4*1*1m 1*1*1m, and the mesh pad size is generally 6*2*0.3m 6*2*0.17m 4*2*0.35m.
Gabion pad material:
(1) Galvanized steel wire: high-quality low-carbon steel wire, with a diameter of 2.0mm-4.0mm, and a tensile strength of not less than 380MPa. The surface of the steel wire is protected by hot galvanizing. The thickness of the galvanized protective layer is made according to the customer's requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum mixed rare earth alloy steel wire: (also known as golfan) steel wire, which is a new material in the world in recent years, has corrosion resistance more than three times that of traditional pure galvanizing. The diameter of the steel wire can reach 2.0mm-4.0mm, and the tensile strength of the steel wire is not less than 380MPa.
(3) Galvanized steel wire wrapped with plastic: high-quality low-carbon steel wire is wrapped with a layer of PVC or PE protective layer on the surface of the steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.
(4) Zinc-5% aluminum mixed rare earth alloy steel wire wrapped with plastic: a layer of PVC or PE protective layer is wrapped on the surface of Zinc-5% aluminum mixed rare earth alloy steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.
