Product Details:
|
| Components: | Welded Mesh Gabion,Spring, Joint Pin, Geotextile Fabric | Sureface Treatment: | Heavy Hot Dipped Galvanized |
|---|---|---|---|
| Mesh Size: | 3" X 3" | Wire: | 5.0mm |
| Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
| High Light: | geotextile lined gabion hesco,5mm hesco gabion,geotextile lined hesco gabion |
||
Welded Military Sand Gabion Box Wall Hesco Military Barrier Army Protective
Introduction :

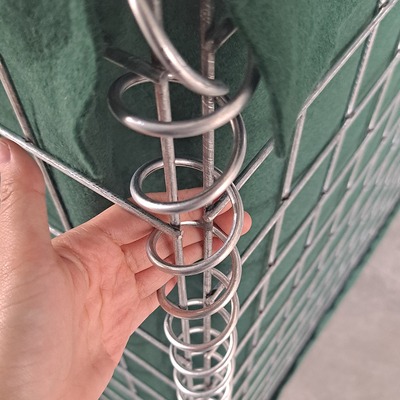

Military Sand Wall unit is a multi-cellular wall system manufactured from welded Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and joined with vertical,helical coil joints.

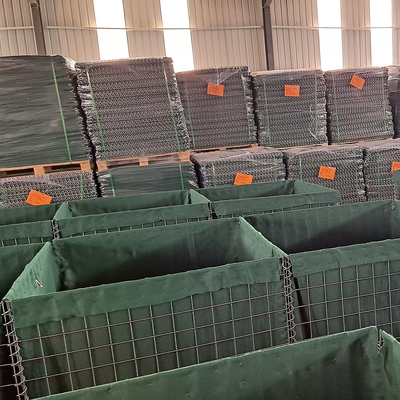

The units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile. can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the military to protect safety.
Quick View of Military Sand Wall :
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Size : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
Military Sand Wall hesco barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
1.Galfan coated steel mesh frame
2. The integrated unit provides internal structural integrity.
3.Excellent strength and structural integrity
4.High tensile and impact resistance
5. Improve transportation efficiency and speed
Military Sand Wall can be built to any required length and to any height. The unique joining system allows the user great flexibility in configurations and requirements. One of the key advantages of the system is that any readily available infill material can be utilised. Sand, rubble, rocks, soil, concrete and even snow have been successfully used.
Rapid construction is another key feature of the product. A typical wall units equivalent to approximately 1500 sandbags, can be erected and filled by two men and a single common loader in less than twenty minutes. An equivalent wall constructed of sandbags would take 10 men 7 hours to build.
The Detailed Explanation of Application for Barrier:

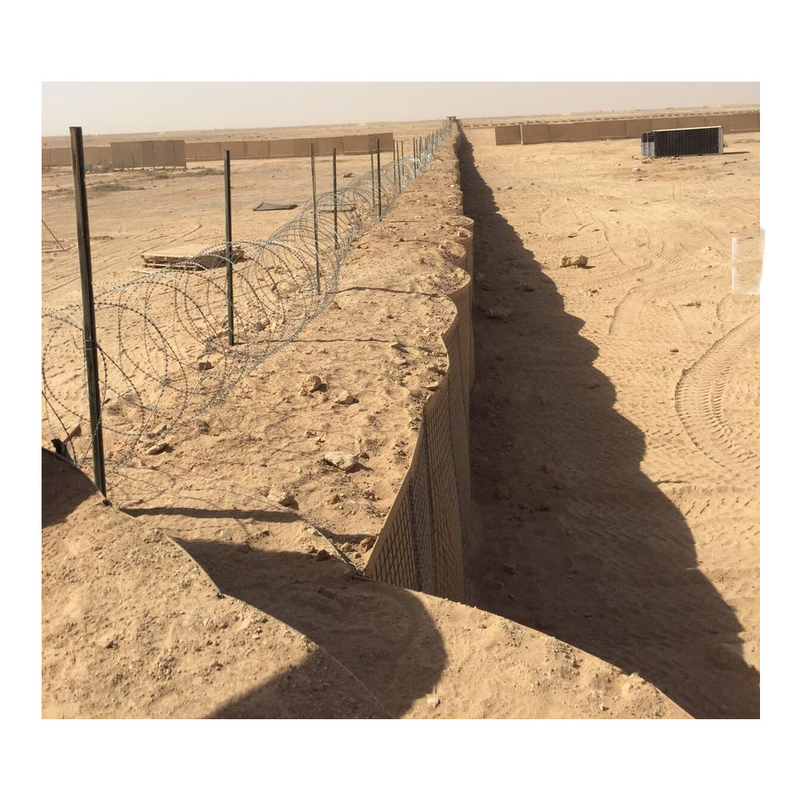

1. Military Fortifications
Most Army Used Barrier build up a Military Fortifications, Because it can stack on each other, You can change the width and height by your demands. More easy and flexible.
2. Shooting Range
Nowadays, A lot of people use Barrier to build a shooting range, because its High Strength Defense, more safety.
3. Flood Control
We Mentioned above, The Barrier is more and more popular and Homemade. Most Countries Near the coastline choose the Barrier as Flood Protection Wall.Even around the hotel they stand up the Barrier for Protection Wall.
