Product Details:
|
| Cells: | 5 Cells | Sureface Treatment: | Heavy Hot Dipped Galvanized |
|---|---|---|---|
| Mesh Hole: | 3" X 3" | Wire: | 5.0mm |
| Life Duration: | ≥ 25 Years | Warranty: | ≥ 3 Years |
| High Light: | geotextile lined bastion barrier mesh,hot galvanized bastion barrier mesh,geotextile lined hesco wall barrier |
||

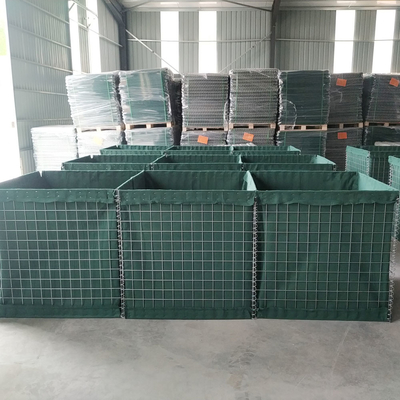

Hot Galvanized Welded Military Defensive HESCO Barrier Boxes With Geotextile
Hot galvanized wire
Usually, the materials for welding gabion boxes are hot-dip galvanized wire and Galfan coated wire, which are corrosion resistant, high in strength and long in service life. Wire diameter: 5.0mm (thick enough to withstand impact)
Spring wire for connecting mesh plates
Usually, the spring wire is made of the same wire as the metal panel. It informs the net cage to load sand or stones together with the panel. Spring wire diameter: 4.0 mm

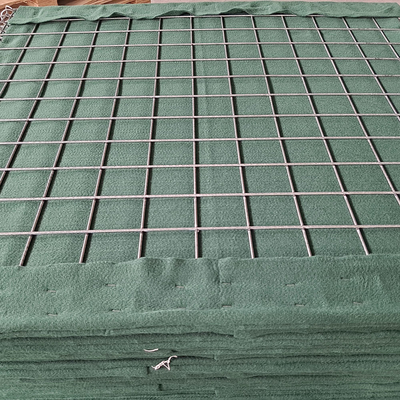

Welded mesh plate
We have a full-automatic machine, which is mainly used for thick-line welding of screen plates, and deep welding points make the screen plates firmer. Mesh: 75mm * 75mm (standard and strong) You can also make bigger holes according to customer's requirements.
Geotextile
It has various colors: sand, brown, gray and green. Generally, the weight of geotextile is 300 GSM and our geotextile is uniform in thickness, reaching the national standard.
Flat Packed Individual Unit Dimensions & Weight
| Unit | Height | Width | Length | Weight |
| 3 | 8" (0.2m) | 39" (1.0m) | 39" (1.0m) | 231lb (105kg) |

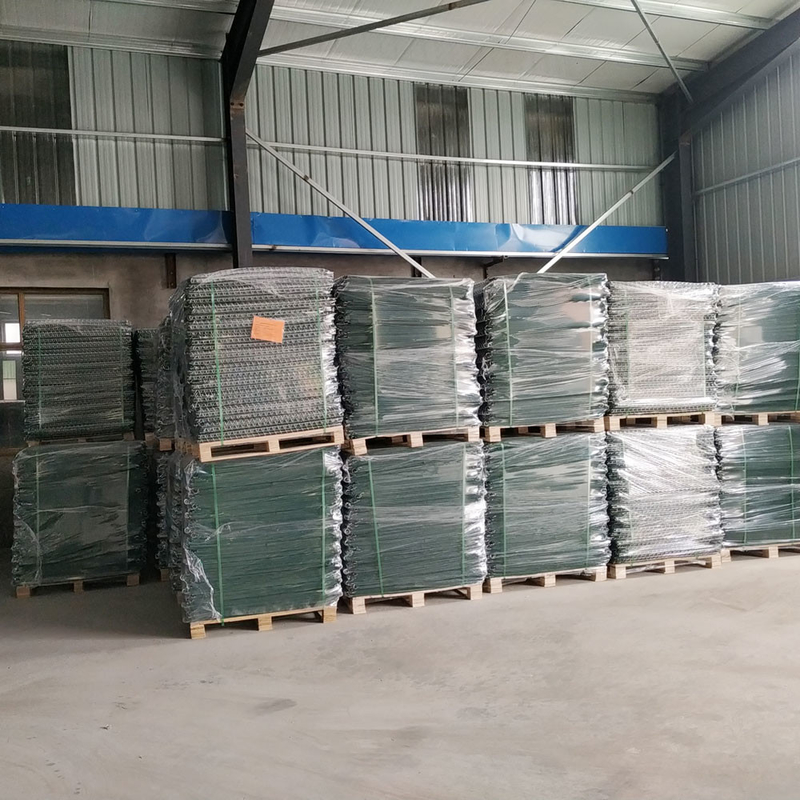

Packing Dimensions & Weights
| Unit | Units per Pallet | Pallet Height | Pallet Width | Pallet Length | Pallet Weight | Pallets Per 13.5m Trailer | Pallets Per 40' Container |
| 3 | 8 | 70" (1.78m) | 46" (1.17m) | 46" (1.17m) | 1892lb (860kg) | 22 |
20 |
All Size Sheet :
| MODEL | Height | Width | Length | NO. of Cells |
| SX-1 | 4'6"(1.37M) | 3'6"(1.06M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-2 | 7'(2.1M) | 3'6"(1.06M) | 108'(33M) | 30 cells(6*5) |
| SX-3 | 2'(0.61M) | 2'(0.61M) | 4'(1.21M) | 2 cells |
| SX-4 | 3'3"(1.0M) | 3'3"(1.0M) | 32'(10M) | 10 cells(2*5) |
| SX-5 | 2'(0.61M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-6 | 5'6"(1.68M) | 2'(0.61M) | 10'(3.05M) | 5 cells |
| SX-7 | 7'3"(2.21M) | 7'(2.13M) | 90'(27.74M) | 13 cells(2*4,1*5) |
| SX-8 | 4'6"(1.37M) | 4'(1.22M) | 32'(10M) | 9 cells(1*4, 1*5) |
| SX-9 | 3'3"(1.0M) | 2'6"(0.76M) | 30'(9.14M) | 12 cells(2*6) |
| SX-10 | 7'(2.12M) | 5'(1.52M) | 95'(30.5M) | 20 cells(4*5) |
| SX-11 | 3'3"(1.0M | 3'3"(1.0M) | 3'3"(1.0M) | 1 Cell |
| SX-12 | 7'3"(2.21M) | 7'3"(2.21M) | 7'3"(2.21M) | 1 Cell |
The defensive barrier is a modern gabion primarily used for flood control and military fortifications . It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms . It has seen considerable use in many countries.
Defensive barriers are walls that are resistant to blast shock waves, limiting the destructive effects of explosions to a certain range. Compared with reinforced concrete explosion-proof wall, it has the advantages of light weight, easy installation, easy disassembly and recycling.
Defensive barriers can be widely used in:
Perimeter security and defensive walls, equipment revetments, search areas for explosives and contraband, ammunition compounds, personnel and material bunkers, observation points, defensive firing positions, road checkpoints, border checkpoints. Protection of existing structures, freeway traffic management, flood protection, watercourses, emergency flood protection deployment, erosion control retaining walls.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000 USD, 100% in advance. Payment>=5000 USD, 50% T/T in advance ,balance before shipment.
If you have another question, please feel free to contact us .
