Product Details:
|
| Name: | Gabion Basket | Wire Diameter: | 2.7, 3.0, 3.4,3.9 Mm |
|---|---|---|---|
| Hole Size: | 6x8cm, 8*10cm ,10x12cm | Surface Treatment: | PVC Coated, Galvanized |
| Application: | Construction Wire Mesh,Cages,Protecting Mesh | Certification: | CE,ISO ,SGS,COC |
| Application: | Can Be Widely Used In Flood Controlling,retaining Wall,river Bank Protection,slope Protection | Feature: | Corrosion Resistance |
| High Light: | 2*1*1 m pvc coated gabion baskets,erosion resistant pvc coated gabion baskets,2*1*1 m gabion pvc coated |
||
2*1*1 M Hexagonal Pvc Coated Gabion Basket Cages Erosion Resistant

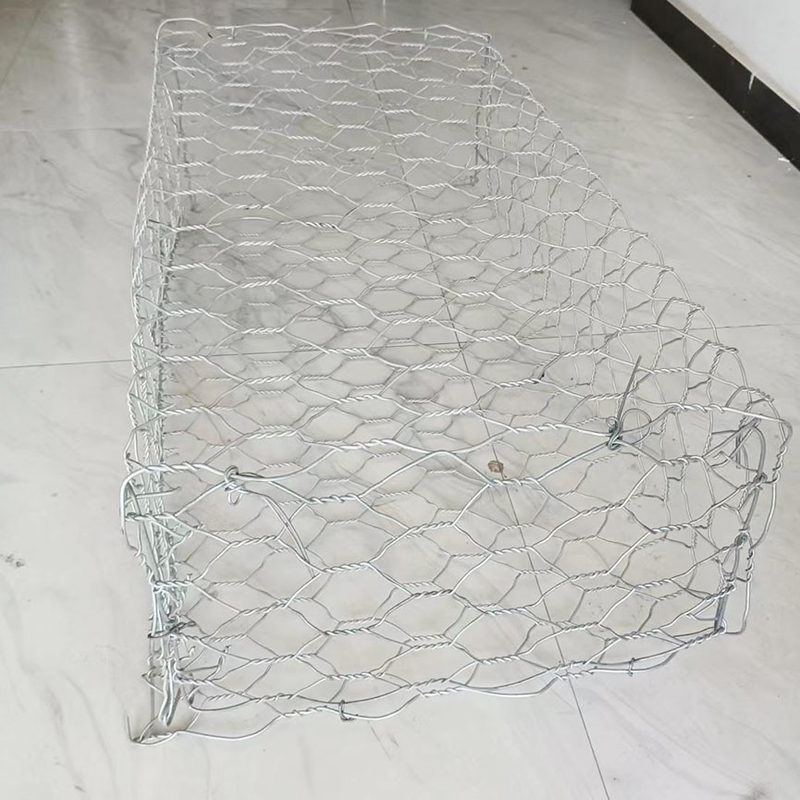

Gabion Basket Description
Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.
Gabion Basket Specification list
| mesh hole size : | 60*80mm, 80*100mm, 100*120mm |
| mesh body wire : | 2.7mm,3.0mm |
| edge wire : | 3.4mm,3.8mm |
| tie wire : | 2.2mm |
| gabion size: | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment : | heavy zinc coated galvanized, pvc coated |
| use | retaining walls, channel lining and other applications |
| Weaving type | Feature | Material |
Mesh size
|
Wire Gauge
|
Processing Service |
| Durable Three Normal Twist | Corrosion Resistance | Galvanized Iron Wire |
80x100 cm 100x120cm |
2.7mm-3.5mm | Bending Cutting |
Gabion Basket Advantage
Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by Fibromat makes a great Earth Retention System caters for slopes erosion control, toe and river bank protection, maximizing permeability on the structure while providing reinforcement and grass establishment.
Gabion Basket Feature
High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.
Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.
Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.
Good ductility, no structural joints.
The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wire.
Gabion Basket Packing and Loading
After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
For 2*1*1 m :
1*20 gp :1100 pcs (11000sqm)
1*40 hq:1800 pcs (18700sqm)
