Product Details:
|
| Features: | High Corrosion Resistance, High Strength, Ductility | Weave Style: | PVC Coated Gabions Baskets Prices Retaining Wall |
|---|---|---|---|
| Color: | Sliver，Green，Gray | Surface Treatment: | Galvanized, PVC Coated |
| Mesh Wire: | 2.0mm-4.0mm | Selvedge Wire: | 3.4mm, 3.8mm |
| Lacing Wire: | Common Use 2.2mm | Zinc Coating: | 240-260g/m2 |
| Gabion Box Size: | 1*1*1m / 2*1*1m / 3*1*1m / 2*1*0.5m | Application: | Earth-Retaining Wall, River Bank Gabion Protection |
| High Light: | hexagon 2m gabion basket,seawall protect 2m gabion basket,2m small gabion baskets |
||
Anping Shuxin Factory Direct Sales Hexagon Gabion Basket Prices Seawal Protect Gabion Cages

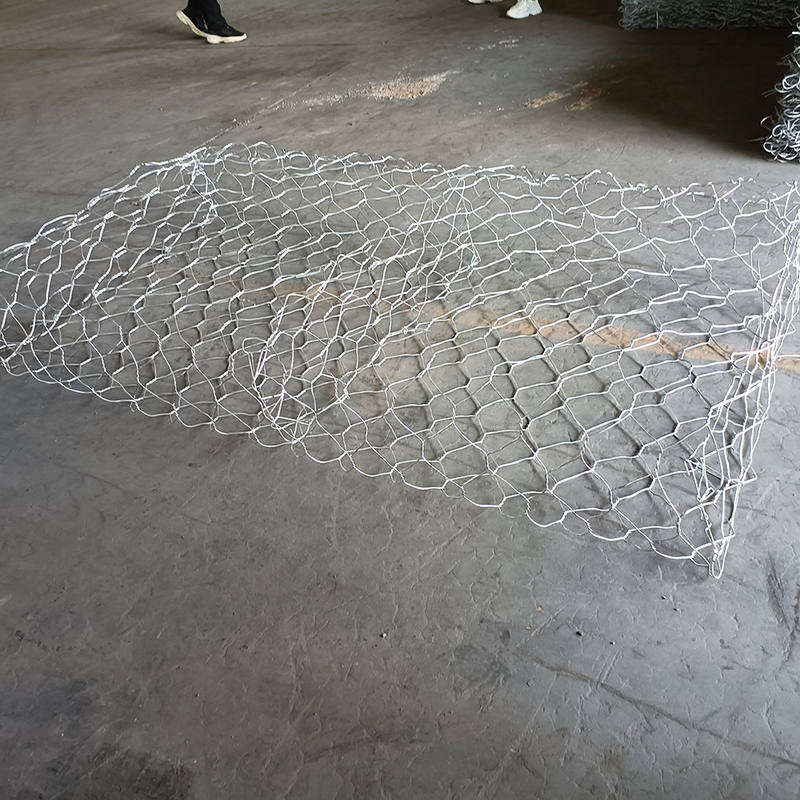

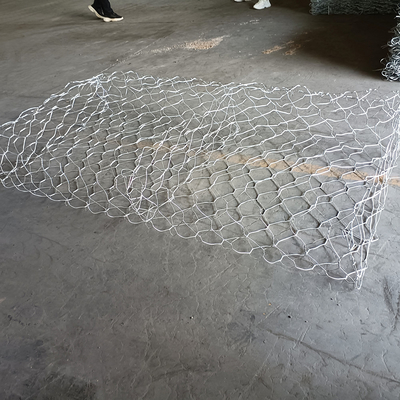

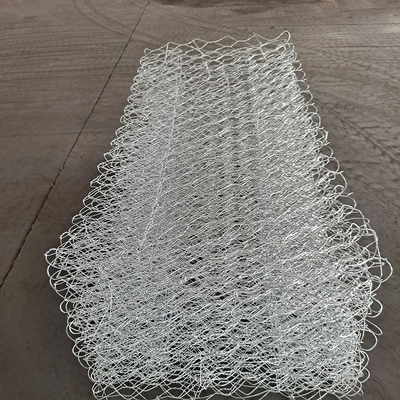

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.
Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
Gabion Material
. Hot DIP galvanized wire / Heavy zinc-coated wire
. PVC coated wire
. Galfan wire
Gabion Details

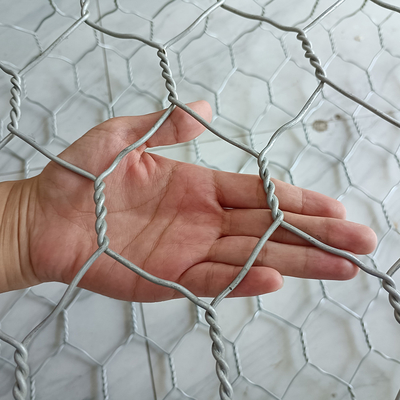

Mesh Type: Double twisted hexagonal
Mesh size: 6x8cm, 8x10cm, 10x12cm etc.
Gabion size: Can be design as per the clients' requirement.
(The normal size: 1.5x1x1m, 2x1x1m, 3x1x1m, 2x1x0.5m, 4x1x1m, )
|
Gabion box (mesh size): 80*100mm 100*120mm |
Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 | |
|
Gabion mattress (mesh size): 60*80mm |
Mesh wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire diameter. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
|
special sizes Gabion are available
|
Mesh wire diameter | 2.0~4.0mm |
superior quality,competitive price and considerate service |
| Edge wire diameter | 2.7~4.0mm | ||
| Tie wire diameter | 2.0~2.2mm |
| Weaving type | Feature | Material |
Mesh size
|
Wire Gauge
|
Processing Service |
| Durable Three Normal Twist | Corrosion Resistance | Galvanized Iron Wire |
80x100 cm 100x120cm |
2.7mm-3.5mm | Bending Cutting |
Gabion Basket Application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.
Gabion Basket Advantage:
Economic. Just fill the stone into the gabion and seal it.
Easy to install.
High zinc coating thus anti-rust and anti-corrosive.
Low cost and High security.
Good permeation can prevent the damage by hydrostatic pressure
Less transport freight. It can be folded together for transport and further installation.
