Product Details:
|
| Features: | Easy Transportation, Easily Assembled | Material: | Low-Carbon Iron Wire |
|---|---|---|---|
| Finish: | Hot Dipped Galvanized, PVC Coated | Wire Diameter: | 2.7mm, 3.2mm, 4mm |
| Hole Size: | 6x8cm, 10x12cm, 8x10cm | Size: | 2x1x1m, 4x1x1m, Support Customization |
| Technique: | Double Twisting | Color: | Silver, Green, White |
| Sample: | Free Sample Send | Package: | 100PCS/bundle |
| Zinc Quantity: | 275 GSM | Production: | 7 Days |
| High Light: | 2x1x1m stone gabion baskets,8*10cm stone gabion baskets,hexagon hole gabion stone cages |
||
PVC Gabion Cage 2.7mm Hexagonal Gabion Mesh Gabion Basket Netting Mesh for Stone Filled Gabion Box
Gabion box used heavy zinc coated galvanized wire, it is anti rust, under water can use many years. it is also easy to install, filled stone inside is okay , we will send gabion mesh and tie wire together.
More and more people now use Gabion Box to protect their property, especially under frequent El Niño phenomena, South America people use Gabion Box as a retaining wall, to control flood.
Gabion Basket Size (Partof them, can accept customized)
| Product Name | Outer Size (m) | Quantity of Diaphrgam | Total Square Meter |
| Gabion Basket | 1x1x1 | 0 | 6 |
| 2x1x1 | 1 | 11 | |
| 3x1x1 | 2 | 16 | |
| 4x1x1 | 3 | 21 | |
| Gabion Mattress | 2x1x0.5 | 1 | 7.5 |
| 3x1x0.5 | 2 | 11 | |
| 4x1x0.5 | 3 | 14.5 | |
| 5x1x0.5 | 4 | 18 | |
| 6x2x0.3 | 5 | 31.5 |
Gabion Basket Specification ( WIRE + MESH HOLE)
| Gabion Wall Baskets | |
| Material | Steel wire, galvanized wire, Zinc-Aluminum wire |
| Surface treatment | Hot dipped galvanized, PVC powder coated |

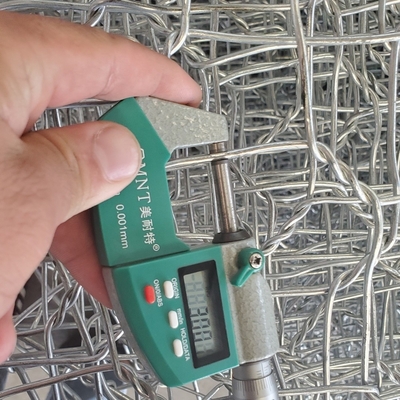

| Wire Diameter | 2.2, 2.7, 3.0 mm |
| Selvedge Wire | 3.4mm |

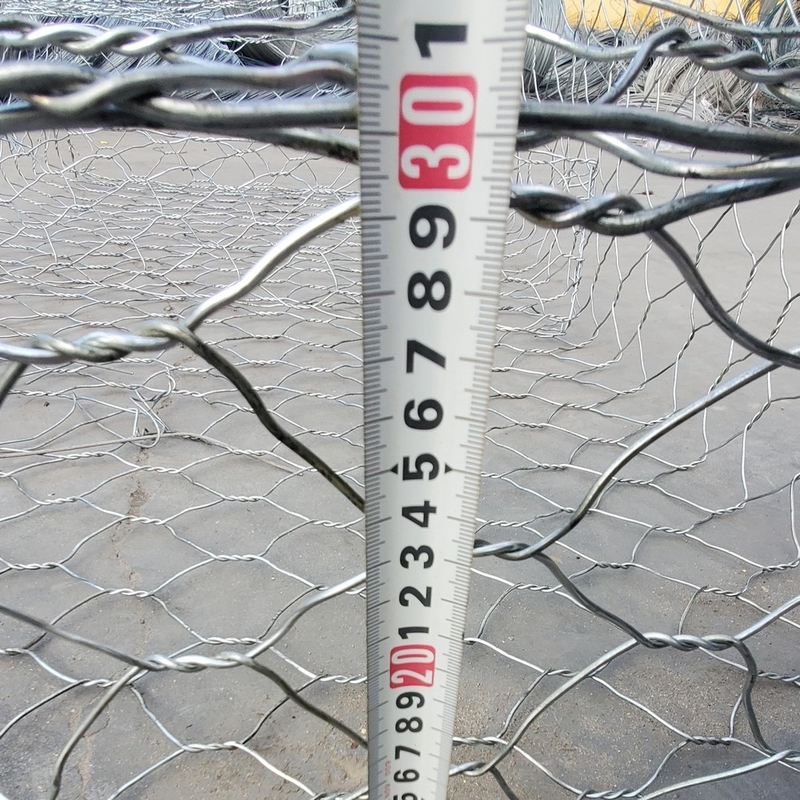

| Woven Mesh Opening | 60*80mm, 80*100mm,100*120mm, ect |
| Size | 1*1*1m,2*1*1m, 4*1*1m, other size can be produced as requested |
| Colour | Silver, White, Green |
Product Description

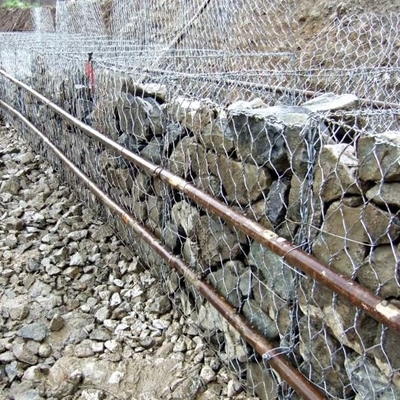

Gabion Retaining Wall Baskets are rectangular woven wire mesh baskets of varying size. Typically the lengths are 2m or 4m and of height either 0.5m or 1m. The traditional use of gabion baskets was that when rock filled they could be designed to act as a monolith mass for retaining wall construction that was quite flexible in nature, was free draining and was quite suited to remote construction areas.
Feature
1. Easy to install and assemble
2. High versatility: Woven gabion baskets can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.
3. Long lifespan: All of our woven gabion baskets are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.
4. Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses
5. Suitable for use in soft ground conditions with minimal foundation treatment required;
6. Shipped as flat pack units with simple assembly and installation on site.
Application
Gabion Basket Retaining Wall cages are strong and reliable offering engineers many benefits for managing earth and water. Typically gabion baskets are preferred on large scale civil, mining, industrial, road and rail projects.
Special internal bracing wire is provided to ensure the structure maintains high aesthetic value whilst remaining functional. Century woven gabion baskets have industry leading high density coating, actively resisting corrosion with life expectancy up to 100 years in modest environments.
