Weave Gabion Retaining Walls 4*1*1m Woven Gabion Basket Stone Cage Garden Fence Price

Weave Gabion Retaining Walls 4*1*1m Woven Gabion Basket Stone Cage Garden Fence Price


Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.

Product Characteristics:
(1) Economic. Just fill the stone into the gabion and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
(6) Good permeation can prevent the damage by hydrostatics.
(7) Less transport freight. It can be folded together for transport and further installation.



Introduction to the use of gabion baskets:

●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.

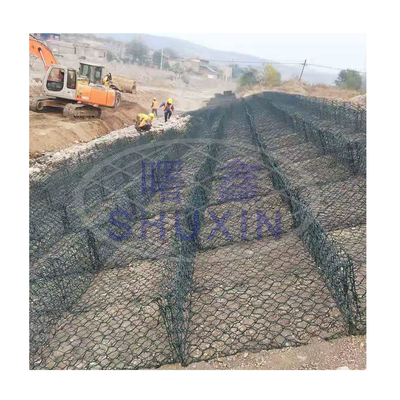

●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.

Installation Process
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.

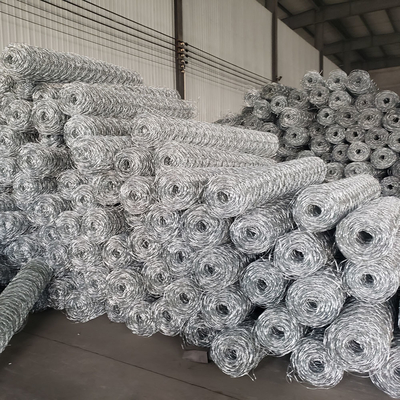

Packing:
woven bags of the above and bottom,high quality package or as customers requested
In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet.
According to customers requirement.
Shipping:
Production time :15-20 days after received your payments
Transportation way : by sea or by air
Port: Tianjin XINGANG or as your choice
