Rapid Deploy Galvanized Welded Mesh Sand Filled Barriers (Gabion)

High-Security Defense & Flood Control Barriers | Rapid Deployment | Military & Civil Engineering Standard

## Product Overview

Our Rapid Deploy Galvanized Welded Mesh Sand Filled Barriers (commonly known as defensive gabions or bastions) are the ultimate solution for emergency flood control, military fortification, and perimeter security.

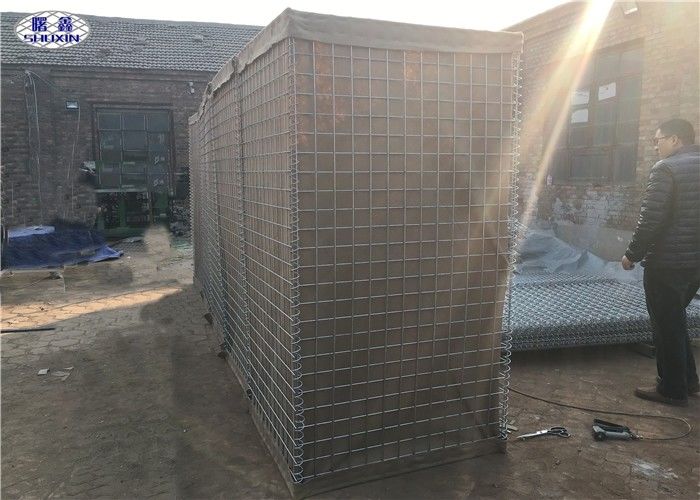

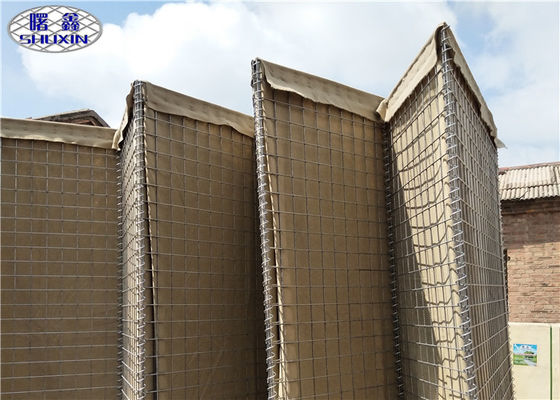

Constructed from heavy-duty galvanized welded wire mesh and lined with non-woven polypropylene geotextile, these modular units can be filled with sand, earth, or gravel to create an impenetrable wall in minutes.

Description of Parts:

1. Galfan Coated Welded Mesh Frame

• Highly Durable Construction
• Ideal of containing large amounts of heavy fill material that gives the system its strength

2. Noe-woven Geotextile Liner

    Units can be both lined or unlined allowing a wide range of fill material

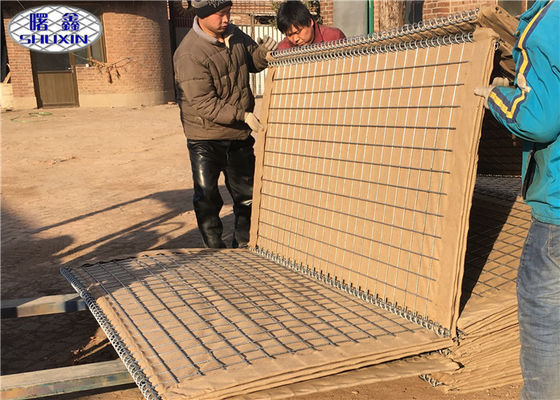

3. Spiral Hinged Corners

    Allows flat packing for ease of transportation

Operational Principle

It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.

The Standard Technical Specifications from SX 1 to SX 19

• Custom sizes, wire gauges (3.0mm - 6.0mm), and coating options (Hot-Dipped Galvanized or Galfan coating) are available upon request.

• MOQ (Minimum Order Quantity): 20 FT Container (Approx. 6 - 200 sets depending on model).

## Primary Applications & Uses

• Military & Defense: Forward Operating Bases (FOBs), ammunition bunkers, border checkpoints, and personnel shelters.

• Flood Mitigation: Riverbank reinforcement, temporary cofferdams, flash flood protection, and coastal erosion control.

• Civil Security: Critical infrastructure protection (power plants, oil refineries), roadblock barriers, and perimeter security for high-profile events.

## Why Global Buyers Choose Our Barriers (Selling Points)

• Rapid & Easy Deployment: Arrives collapsed on pallets. Unfolds like an accordion. Connect individual units seamlessly using joining pins, and fill using a front-end loader.

• Superior Corrosion Resistance: Manufactured with Hot-Dipped Galvanized or Galfan (Zn-5%Al-MM) wire, ensuring a service life of up to 10–20 years in harsh outdoor or marine environments.

• Heavy-Duty UV Protection Geotextile: The inner liner is made of premium, non-woven UV-resistant polypropylene geotextile, preventing fill material leakage while allowing water permeability.

• Blast & Impact Protection: Engineered to absorb high-energy impacts, making them highly effective against blast waves, shrapnel, and vehicle ramming.

## Installation Guide (Step-by-Step)

1. Unpack: Remove the collapsed barrier module from the pallet.

2. Unfold & Position: Stretch the barrier wall out to its full length in the desired location.

3. Connect: Use the provided spiral joints or connecting pins to join multiple barrier units together.

4. Fill: Use an excavator, crane, or front-end loader to fill the cells with locally available sand, dirt, or gravel.

5. Compact: Compact the filling material slightly to ensure structural integrity.

## Global Project Case Studies

1. Emergency Flood Defense Project (Southeast Asia)

• Quantity Supplied: 450 Sets of KN-3 Barriers.

• The Challenge: A tropical monsoon caused severe riverbank breaches, threatening nearby agricultural lands.

• Result: Within 48 hours of arrival, local engineering teams deployed a 2.2 km temporary levee. The sand-filled barriers successfully contained the rising waters, preventing millions of dollars in potential flood damage.

2. UN Peacekeeping Base Fortification (Middle East)

• Quantity Supplied: 120 Containers of KN-1 & KN-10 Blast Walls.

• The Challenge: Establishing a secure compound in a high-risk desert zone with a tight timeline.

• Result: The modular, rapid-deploy design allowed the troops to erect a 4-meter-high perimeter security wall within 5 days using local sand, providing immediate ballistic and blast protection.

## Packaging & Logistics

• Packaging Details: Packed on robust wooden or iron pallets, wrapped with shrink film, and secured with steel straps to prevent damage during ocean freight.

• Loading Capacity: Optimized for 20GP or 40HQ containers to minimize shipping costs per unit.

• Lead Time: 15–25 days after deposit confirmation (for standard models).
