Heavy Duty Sand Filled Barriers For Military & Flood Control
High-Performance Defense & Erosion Control Engineering

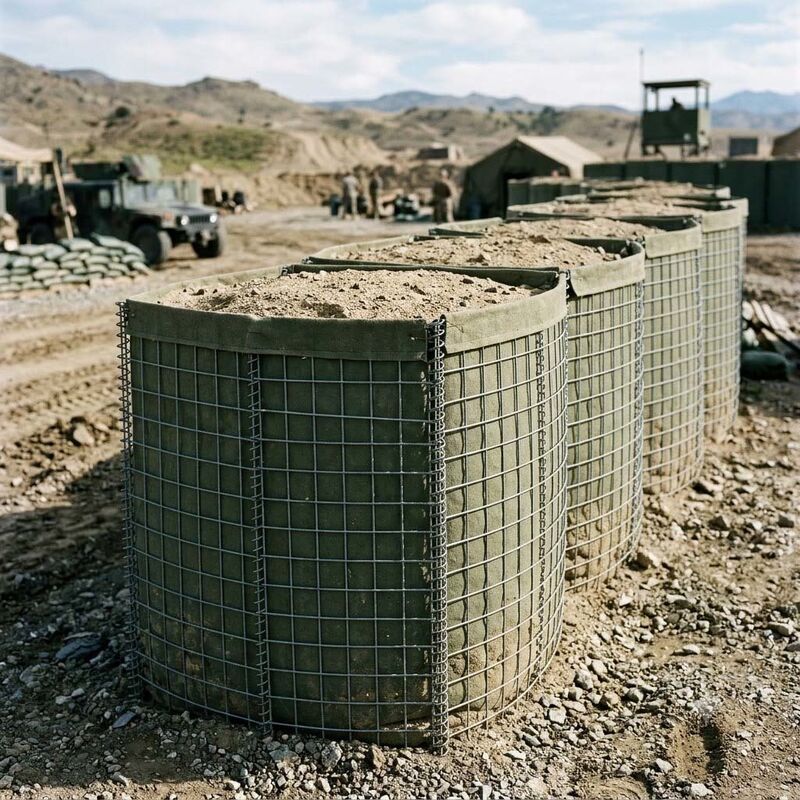

Our Heavy Duty Sand Filled Barriers are engineered to provide ultimate protection in the most demanding environments. Designed as a multi-cellular barrier system, these heavy-duty structures are manufactured from high-strength geotextile linning and robust welded wire mesh. Whether utilized for rapid military fortification or emergency flood control, they offer an unyielding defense against ballistics, blast impacts, and raging floodwaters.
With a collapsible design that ensures rapid deployment and easy transportation, these sand-filled bastions represent the gold standard in modern security barriers and civil engineering protection.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Sand Filled Barriers Specification
| Model |
Height |
Width |
Length |
Internal Cells |
| SX-1(Mil 1) |
54”(1.37m) |
42”(1.06m) |
32’9”(10m) |
5+4=9 cells |
| SX-2(Mil 2) |
24”(0.61m) |
24”(0.61m) |
4’(1.22m) |
2 cells |
| SX-3(Mil 3) |
39”(1.0m) |
39”(1.0m) |
32’9”(10m) |
5+5=10 cells |
| SX-4(Mil 4) |
39”(1.0m) |
60”(1.52m) |
32’9”(10m) |
5+5=10 cells |
| SX-5(Mil 5) |
24”(0.61m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-6(Mil 6) |
66”(1.68m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| SX-7(Mil 7) |
87”(2.21m) |
84”(2.13m) |
91’(27.74m) |
5+4+4=13 cells |
| SX-8(Mil 8) |
54”(1.37m) |
48”(1.22m) |
32’9”(10m) |
5+4=9 cells |
| SX-9(Mil 9) |
39”(1.0m) |
30”(0.76m) |
30’(9.14m) |
6+6=12 cells |
| SX-10(Mil 10) |
87”(2.21m) |
60”(1.52m) |
100’(30.5m) |
5+5+5+5+5=20 cells |
| SX-11(Mil 11) |
48”(1.22m) |
12”(0.30m) |
4’(1.22m) |
2 cells |
| SX-12(Mil 12) |
84”(2.13m) |
42”(1.06m) |
108’(33m) |
5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) |
108”(2.74m) |
42”(1.06m) |
10’5”(3.18m) |
6 cells |
Primary Applications
-
Military Fortifications & Perimeter Security: Ideal for constructing temporary or permanent military bases, ammunition bunkers, forward operating bases (FOBs), and vehicle checkpoints to mitigate blast and ballistic threats.
-
Emergency Flood Control & Management: Rapidly deploys along riverbanks, coastlines, and urban areas to create robust flood walls, preventing heavy water ingress and controlling erosion.
-
Critical Infrastructure Protection: Safeguards power plants, government buildings, and transport hubs from natural disasters or security breaches.
-
Storm Surge & Coastal Defense: Acts as a heavy-duty barrier against rising tides and severe weather conditions.
Sand Filled Barriers Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
Sand Filled Barriers Features
1.Galfan coated steel mesh frame
2. The integrated unit provides internal structural integrity.
3.Excellent strength and structural integrity
4.High tensile and impact resistance
5. Improve transportation efficiency and speed
Packaging:
The welded gabion mesh are collapsed when shipping.Usually in nude, or in pallet then wrapped with plastic film.Besides, customers' request are also available.
