Plastic Coated Gabion Wall Cages / Hexagonal Rock Filled Gabion Cages
Product Details
gabion wall baskets
,rock mesh retaining wall

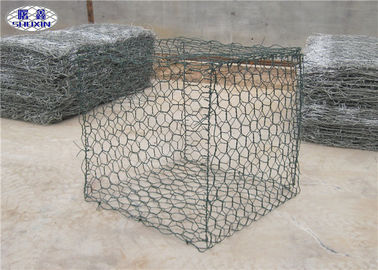

Plastic Coated Hexagonal Weaving Rock Gabion Wire Mesh Cage Wall
Gabion box is made of triple twist hexagonal woven mesh fabric with G. I. wires and PVC coated wires. The box shaped gabions are simply filled with natural stone used for channels, rock fall, roadside and culverts protection.
Our gabions materials can also be HDPE coated, which is corrosion resistant and acid resistant. The HDPE coated woven gabions mattresses is a good solution for coastline, which is a undulating terrain and a high level of acid in industrial waste.

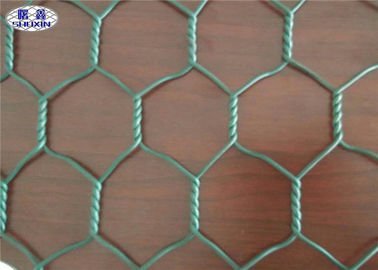

The strength of gabions comes from a double twisted hexagonal steel wire mesh which is reinforced by selvedges of heavier wire running along the edges and by transverse diaphragms. The double twisted wire will not unravel, even when the gabion is cut.
Wire Thickness Specification:
| Mesh type | 8*10cm | 6*8cm | ||
| Characteristics | Metallic coated | PVC coated | Metallic coated | PVC coated |
| Mesh openings | 83mm x 114mm | 83mm x 114mm | 64mm x 83mm | 64mm x 83mm |
| Mesh wire | 2.7mm (0.106 in.) | 3.05mm( 0.120 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) |
| Selvage wire | 3.4mm (0.134 in.) | 3.8mm (0.150 in.) | 2.7mm (0.105 in.) | 2.7mm (0.105 in.) |
| Lacing wire | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm (0.087 in.) | 2.2mm(0.087 in.) |
Size of Gabion Box:
| Opening(mm) |
Wire Diameter(Metal Wire) mm |
Wire Diameter (PVC Coated) Inner/Outside(mm) |
Strands |
| 60X80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80X100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80X120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100X120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100X150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120X150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
Size of Gabion Mattress:
| Size | Notes | |||
| Length(mm) | Width(mm) | Height(mm) | Unit | volume(m³) |
| 2.00 | 1.00 | 0.30 | 1 | 0.60 |
| 3.00 | 1.00 | 0.30 | 2 | 0.90 |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 |
Gabion Baskets Applications:
1. Control and guide of water or flood
2. Flood bank or guiding bank
3. Preventing of rock breaking
4. Bridge Protection
5. Water and soil protection
6. Coast protection
7. Seaport engineering
8. Strengthening structure of soil
9. Protection of road
-
