Product Details:
|

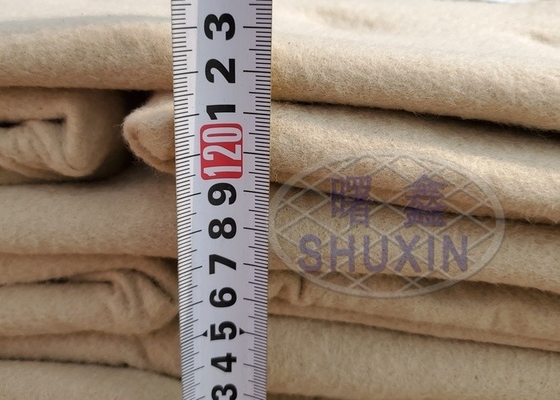

| Geotextile Weight: | 300 G/㎡, Standard | Mesh Diameter: | 4.0 Mm |
|---|---|---|---|
| Accessories: | Mesh Panel, Spring, Geotextile | Sample: | Free Sample In Small Piece |
| Color: | Sand Color, Military Green | Package: | Wooden Pallet |
| Type: | Welded Mesh, Gabion | Hole Shape: | Sqaure |
| High Light: | 5 cells hesco flood barriers,mil 3 hesco flood barriers,retractable defensive barrier |
||

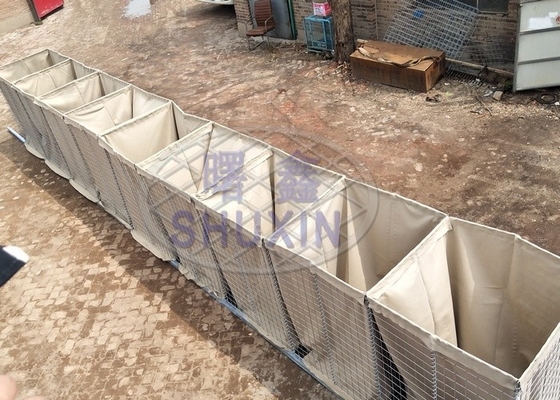

oil plant protection galvanized defensive barrier lined geotextile fabric for shooting range training
As Common Suppliers to the Defense Forces, Anping Shuxin Wire Mesh adhering to the principle of quality first, happy service and fast delivery, it has maintained rapid development.
At least 100 containers are exported every year, most of defensive barriers are used for military protection, and are widely needed by the army. Some of them are also used for personal flood control, home protection, etc. Whether it is a bidding project or personal home use, Anping Shuxin wire mesh will provide you with faster and professional services.
The Technical Specifications from SX 1 to SX 19
| Welded Military Sand Filled Bastion Wall | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Welded Defensive Barriers:
Military HESCO Defensive Barriers
1. Perimeter Security HESCO Barrier and Defensive Wall
After filled with sand or earth in the Barrier, it can not easy to penetrate, Better to use as Security barrier and Defence Wall
2. Temporary Fort and Command Post
Military Defensive Barriers also can build Temporary Fort and Command Post, Fast Building.
3. Guard Posts
Filled With earth or sand, and stacked together, to prevent Impact.
Usage:
1. Flood Control Retaining Wall
suggest to use SX-10 plust SX -3 , stack together to protect, details welcome to inquiry.
2. Army protection
with high anti impack, can protection well.
The Advantages of Welded HESCO Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible

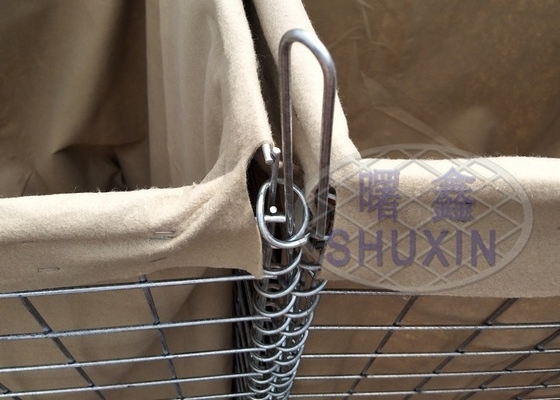

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Fast Operation
Open the Welded Defensive Barriers and filled with sand or earth, Then it Finished, No need to many people to operate and fast.
4. Easy to repair
As a protection Wall to prevent Bullets and shells, there would be small part damage, Just use one piece of welded wire mesh panel insert into the earth and cover the damage part, it can also work long time.
