Ukrain Military Used Anti Tank Barrier Low Visibility Wire work teogether with BTO-16 Egoza Wire to Prevent People and Drones

Ukrain Military Used Anti Tank Barrier Low Visibility Wire work teogether with BTO-16 Egoza Wire to Prevent People and Drones

Sale of MZP/MPP/Putanka Mesh in Ukraine at favorable prices

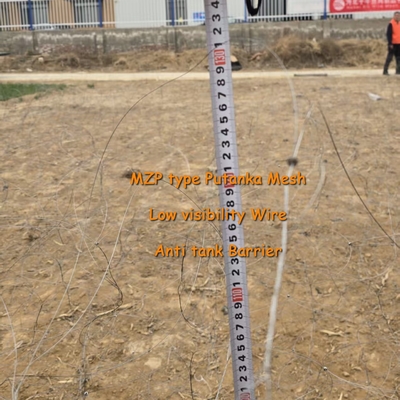

A low-visibility wire barrier (WBB), also known as a tangle, low-visibility wire mesh, is a three-dimensional barrier made of rings of high-carbon wire.

The wire of the MPP is very thin, so such an obstacle is invisible. It refers to engineering non-explosive barriers of the containment type.

The task of the entanglement (MPP) is to complicate or stop the approach to the object. A person falls into a trap of rings and, as a rule, cannot get out on his own. Cutting a passage in the obstacle is very difficult and takes a lot of time.

A barely noticeable wire barrier (entanglement) is a serious obstacle for wheeled and tracked vehicles - wire rings are wound on wheels or tracks and block the rotation of the wheels.

The MPP discreet wire fence is a four-tiered network of ring garlands. It is installed in the form of a parallelepiped.

Rings are woven from galvanized or non-galvanized high-carbon wire GOST 7372-79 with a diameter of 0.5, 0.6, 0.8 and 0.9 mm. Ring garlands are interconnected by wire twists from annealed wire with a diameter of 0.5-0.6 mm (GOST 3282-74). Pegs for fastening, rings for them are made from low-carbon wire.

Technical characteristics of the low-visibility wire mesh (tangle):

How much space does a batch of mix-ups take up in the back of a car?

Here are the measurements of the MPP batch (20 sets):

20 sets will occupy a volume of 0.5318 m3 (an average of 0.026 m³ per set).

The appearance of the fence, as well as the shape of the pegs and rings, may differ slightly from the images presented on the website due to the characteristics of the equipment used during the manufacture of each batch.

If you need to purchase a low-visibility barrier with specific visual characteristics, provide written requirements for the appearance of the barrier.

The price of a subtle obstacle (MPP Confusion)

The price of a discreet barrier depends on many factors, especially the purchase volume, availability in stock, and the type of wire (galvanized or ungalvanized).

Installation of a low-visibility barrier:

You can order the installation of the MPP (Inconspicuous Obstacle, Confusion) from us, or you can install it yourself. For the latter, we provide detailed instructions for installing the MPP "Plutanka".

1. Place the bay in the desired location. Where it will be installed. Important note: after deployment, the MPP will no longer be assembled in the bay. That is, you need to take into account that installing, then reassembling and moving the MPP to another location will no longer work.

2 and 3. Divide the bay into two parts and spread it out in two directions. No need to cut anything.

4 and 5. Stretch two rows of the bay to the full length.

6 and 7. Spread each row outward. Two rows will make four.

8. Fix the bottom pair of turns with pegs. You need to fix a row of spirals made of the thickest wire with pegs.

9. Grasp the coils as shown in the figure and slowly move the MPP.

10. With this movement and stretching, the thick wire spirals will be located at the bottom. The thin wire spirals will come out at the top.

After that, fix the outer row of thick wire spirals with pegs.

11. The extreme rows are fixed with pegs. To increase the height of the MPP, you can use supports to which you can attach coils of thin wire. The installation of the MPP "Plutanka" is complete.

As a support, you can use Kazachka poles with a pointed end, which can be driven into the ground in the field.
