Product Details:
|
| Hole Shape:: | Square Hole | Aperture:: | 76.2 X 76.2mm |
|---|---|---|---|
| Usage: | Defense Barriers | Surface Treatment:: | Hot Dipped Galvanized |
| Packing:: | Pallet | Color:: | Military Green,beige |
| Geotextile: | 300 Gsm | Main Market: | Kenya, Africa |
| High Light: | gabion wire mesh boxes,sand filled walls |
||

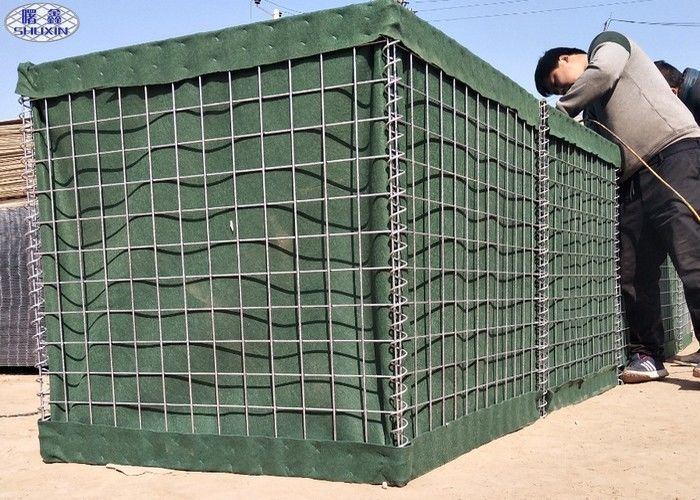

Galvanzied Sand Filled Barriers Hesco Bastion Defense Barriers Wall
HESCO Barrier or HESCO Bastion also called Military Sand Wall HESCO Barrier by most of people, It mainly used as Military Camouglage Net, Defensive Barriers, Shooting Ranges for Military Base and HESCO Bastion Retaining Walls for Flood Control.
Hesco Barrier units can be used for perimeter protection, border control and temporary accommodation bunkers.
The Concertainer MIL hesco barrier factory unit is a multi-cellular barrier system manufactured from welded Zinc-Aluminium coated steel mesh or galvanized steel wire mesh and lined with heavy-duty non-woven polypropylene geotextile.The unique design, strength and versatility enable corners to be constructed easily, shaping the defensive barrier to the surrounding landscape and when joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
Material: Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Hole : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size: 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before welding
Hesco Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
