Anti Blast Wall Welded Wire Mesh , Hesco Barrier Wall For River Flood Protection
Product Details
sand barrier
,sand filled walls
Protection Wall Anti Blast Wall Welded Wire Mesh Hesco Barrier Wall

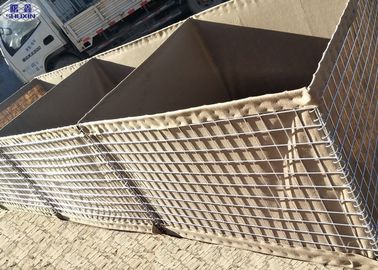

HESCO Barrier is also named as Welded bastion, Welded defense wall, Welded Barrier, Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.
operational principle
It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.
Quick Details
| Unit Type |
Height (M) |
Width (M) |
Length (M) |
Internal Cells |
| SX-mil1 | 1.37 | 1.06 | 10 | 9 |
| SX-mil2 | 0.61 | 0.61 | 1.22 | 2 |
| SX-mil3 | 1.0 | 1.0 | 10 | 10 |
| SX-mil4 | 1.0 | 1.52 | 10 | 6 |
| SX-mil5 | 0.61 | 0.61 | 3.05 | 5 |
| SX-mil6 | 1.68 | 0.61 | 3.05 | 5 |
| SX-mil7 | 2.21 | 2.13 | 27.74 | 4 |
| SX-mil8 | 1.37 | 1.22 | 10 | 9 |
| SX-mil9 | 1.0 | 0.76 | 9.14 | 9 |
| SX-mil10 | 2.21 | 1.52 | 30.5 | 5 |
Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
-
