Product Details:
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: COC ISO
Model Number: SX-5
Payment & Shipping Terms:
Minimum Order Quantity: 100 piece
Price: pls contact us
Packaging Details: carton
Delivery Time: 8-15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 piece per day

Stainless Steel Perforated Filter Tube , AISI 304 Punching Hole Stainless Mesh Tube

Description
Usage: Liquid Filter Hole: Round Customized
Layer: Singer Layer Or Multi Layers Filter Precision: 99 %
Furure: Resistance To Bending And Crimping Application: Filtration System
Specification: Customer Require
Highlight:

perforated metal pipe

,

stainless steel wire mesh tube

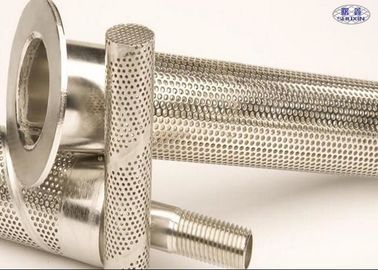

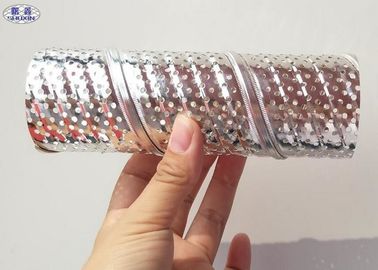

Stainless Steel AISI 304 Punching Hole Stainless Steel Filter Screen Tube



Stainless Steel Perforated Tube for Sand Control is made of 304, 316, 316L perforated stainless steel mesh, iron plate mesh, aluminum net of metal materials.

Stainless Steel Perforated Tube for Sand Control has no length limit, and generally, the intensity of Stainless Steel Perforated Tube is higher than the straight seam filter frames.

Stainless Steel Perforated Tube is supplied in styles of square tube, round tube or sheets.



Specification :

  • Material: stainless steel mesh, hastelloy, mild steel.
  • Hole type: round hole, elliptical hole, square hole, rectangular hole, hexagonal hole.
  • Thickness: 0.5 mm to 10 mm.
  • Diameter: 6 - 169 mm.
  • Filter precision: 2 - 2000 µm.
  • Packing: pallet or wooden boxes.
name Stainless steel perforated filter tube
material stainless steel , iron, galvanized , aluminum,pvc coated,etc
Hole shape Round, Rectangular,Square, Triangle, Diamond, Hexagonal,etc
Hole size 0.6-20mm,ect
Thickness usually 1mm,1.2mm,1.5mm,2.0mm etc
Length 300mm,500mm customized
Width 30mm,35mm,50mm,60mm,customized
Openging rate 45%,60%,85% etc
SurfaceTreatment Electric galvanized, Hot dipped galvanized, oxidation treatment etc
Usage screening,decoration, sifting, filtration, drying, cooling, cleaning
Delivery Detail 7-15 days after receiving the 30% deposit or as required






Features :

  • Flat and smooth surface.
  • Durable and good strength.
  • Hard wearing, and easy to wash for reuse.
  • High dirt holding capacity.
  • Anti-acid, anti-alkali and anti-corrosion.
  • High reliable standard specifications.
ROUND HOLES STAGGERED PATTERN
HOLE CENTERS

GAUGE / PLATE

THICK.

OPEN AREA
.020" RD .045" Stag 26 18%
1/32" RD 1/16" Stag 22 23%
3/64" RD 5/64" Stag 24 33%
3/64" RD 3/32" Stag 22 thru 18 23%
1/16" RD 3/32" Stag 22 thru 16 40%
1/16" RD 7/64" Stag 20 thru 16 30%
1/16" RD 1/8" Stag 26 thru 16 23%
5/64" RD 1/8" Stag 22 thru 14 35%
3/32" RD 5/32" Stag 24 thru 14 33%
3/32" RD 3/16" Stag 24 23%
.117 RD 5/32" Stag 18 51%
1/8" RD 3/16" Stag 24 thru 11 40%
1/8" RD 7/32" Stag 14 thru 12 30%
1/8" RD 1/4" Stag 14, 13 23%
9/64" RD 3/16" Stag 18 51%
5/32" RD 3/16" Stag 22 thru 16 63%
5/32" RD 1/4" Stag 20 thru 10 35%
3/16" RD 7/32" Stag 22 thru 16 67%
3/16" RD 1/4" Stag 24 thru 12 51%
3/16" RD 5/16" Stag 10, 3/16" 33%
3/16" RD 3/8" Stag 14 thru 10 23%
1/4" RD 5/16" Stag 20 thru 16 58%
1/4" RD 3/8" Stag 26 thru 1/4" 40%
17/64" RD 5/16" Stag 20 66%
5/16" 7/16" Stag 20 thru 1/4" 46%
3/8" RD 9/16" Stag 20 thru 1/4" 40%
1/2" RD 11/16" Stag 20 thru 1/4" 48%
1/2" RD 3/4" Stag 16 40%
5/8" RD 7/8" Stag 10 thru 1/4" 46%
3/4" RD 1" Stag 16 thru 1/4" 51%
1" RD 1-3/8" Stag 10 thru 1/4" 48%
1-1/4" RD 1-5/8" Stag 1/4" 54%
1-1/2" RD 2" Stag 1/4" 51%
2" RD 2-1/2" Stag 1/4" 58%
2-1/2" RD 3" Stag 3/16" 63%
3" RD 3-1/2" Stag 3/16" 67%
4" RD 4-1/2" Stag 10 72%
