Silver Welded Perforated Stainless Steel Tube Slotted Tube Filter Cylinders
Product Details
stainless steel wire mesh tube
,stainless steel filter tube

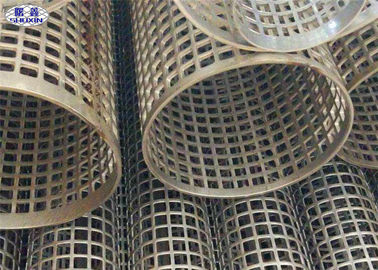

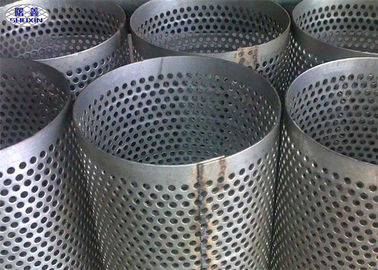

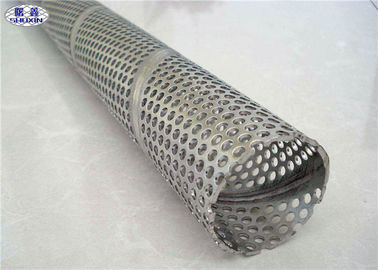

Perforated Welded Stainless Steel Tube and Slotted Tube Filter Cylinders
The Perforated Filter Tubes with cutting edge technology, which is manufactured with carbon steel or stainless steel. The main application is to control sand of the oil reservation layer, prevents the rock bits dropping off the well bore.
Quick Details
|
Pipe Size (Inch) |
Hole No. (Feet) |
Size of Hole (Inch) |
Perforated Area (Feet) |
| 3/4" | 48 | 3/16" | 2.15 |
| 1" | 54 | 5/16" | 4.14 |
| 1-1/4" | 66 | 5/16" | 5.06 |
| 1-1/2" | 78 | 5/16" | 5.06 |
| 2-1/16" | 78 | 5/16" | 5.98 |
| 2-3/8" | 90 | 3/8" | 9.94 |
| 2-7/8" | 102 | 3/8" | 11.26 |
| 3-1/2" | 126 | 3/8" | 13.91 |
| 4" | 138 | 3/8" | 15.24 |
| 4-1/2" | 150 | 3/8" | 16.56 |
| 5" | 162 | 3/8" | 17.88 |
| 5-1/2" | 174 | 3/8" | 19.21 |
| 6-5/8" | 186 | 3/8" | 20.53 |
| 7" | 222 | 3/8" | 24.51 |
| 9-5/8" | 294 | 3/8" | 32.46 |
P.S.: Any size & pattern of the holes can be punched, we can do it as per your requirement.
We can offer perforated pipe with stainless steel or carbon steel material, the max outer diameter is 630mm , the max wallthickness is 25mm, the length can be R3, the size of the round hotes is from 5mm to 25mm. Our new machine can drill any patter and any numbers holes as the customer request for water well .
The overall strength of the drilling of the base pipe and is only 2 to 3% smaller than the standard casing or tubing. Therefore, it can withstand compression deformation class have sufficient overall strength. Even if the local deformation, compression portion of the gap can not be enlarged.
Detail Information
1. Perforated metal pipe material
Aluminum: 1060/3004 H14/5052-H32/6061-T4.
Stainless steel: 304 Stainless steel, 304L Stainless Steel, 316, 316-L
Carbon steel, Hot rolled sheet and coil, cold rolled sheet and coil, Galvanized.
Brass, and various of nonmetal pipe.
Perforated pipe surface treatment: Anodizing, Coating, Electro-galvanizing, Hot Dip Galvanizing, Painting, Powder Coating.
3. The main characteristic of punching products
1.) Easy to processing molding
2.) Super abrasion resistance
3.) A precise size
4.) Can spray paint or polishing
5.) Good sound-absorbing effect
2. Other perforated metal pipe produces we can do
Angle Cutting, Annealing, Bending, Bolt Holes, Circle Cutting, Cleaning Perforated,
Coiling, Corrugating, Cut to Size, DeBurring, Drawings Required, Indented Holes, Laser Cutting, Notching, Plasma Cutting, Plating, Polishing, Slitting, Stamping, Straight Cutting, Welding Decorative Perforated mesh pipe
4. The application of perforated metal pipe
1). Construction, decoration equipment shell
2.) Non-slip
3). Noise barrier sound-absorbing board
4). Speakers of the heat shield
5). Mechanical screen plate etc.
We offer perforated pipe with more options and less cost. Equipped with computerized-programmable feed systems, we will expand your custom design options.
Our Perforated pipe is available in the following patterns
Round, square, oblong, triangle, slot, hex, oval, diamond and a broad variety of special shaped holes. We have tooling available for many different hole patterns and shapes. It is more economical to choose one of the available patterns, although special hole sizes and patterns can be accommodated at additional cost.
-
