100*80*30 Welded Gabion Box , Gabion Stone Cage Basket Retaining Wall

100*80*30 Welded Gabion Box , Gabion Stone Cage Basket Retaining Wall

Description

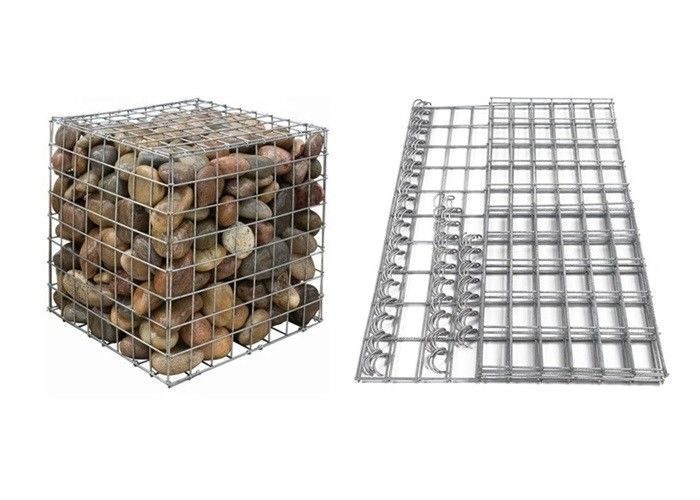

Welded Gabion Box is widely used in retaining wall structures, rockfall and soil protection and so on.

Welded Gabion Box are filled on site with hard and durable stone to form mass gravity structures.

And Welded Gabion Box are quicker and simpler to install than woven mesh gabions.

Feature

1. Easy to Install

Align wire mesh with the spiral pole to form a single structure, the pole will fall down automatically by itself; no tools necessary.

2. High Quality Material

Made of galvanized steel wire, resistant to rust and corrosion; with grids evenly spaced at 5 x 10 cm and hooks to fasten and keep the original shape, gabion is solid and durable.

3. Multi Purpose Use

Can be used as partitions for a retaining wall, fencing, garden decoration; road building or stabilizing inclines against erosion.

4. Cost Effective

Replace traditional walls to save cost and time, easy to operate and has an appealing look.

5. Custom Fillers

Materials for filler based on your need, cobblestone, rock, brick fragments, concrete and wood blocks; lights, flowers or plants can be added for decoration and as the highlight of your yard.

How to install Welded Gabion Box?

Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.

Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.

Step 4. Welded gabion box filled with graded stone by hand or with a shovel.

Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.

Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up

Application

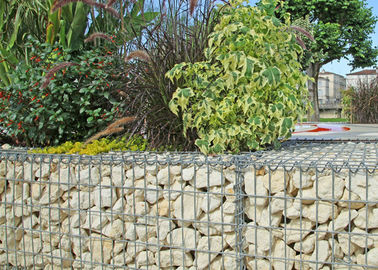

Welded Gabion Box can be used as protective fences around your properties or as a support on slopes or paths. Single stone baskets can be used in your garden to design different fences around fireplaces, as base constructions for garden benches or bars, or to surround and decorate ponds or plants. You can even use them as a decorative support for climbing plants. Metal mesh baskets are made of firm wire.
