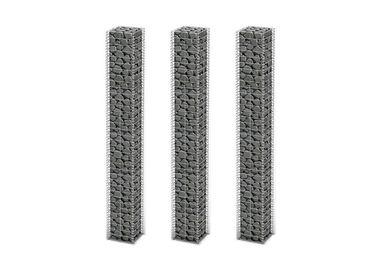

1x1x0.5m 2x1x1m Welded Mesh Gabion Box , Hot Dip Galvanized Gabion Retaining Wall

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE
Model Number: SX-welded gabion
Trading Properties
Minimum Order Quantity: 100 sets
Standard Packaging: Packing into pallet
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union
Product Summary
1x1x0.5m 2x1x1m Welded Mesh Gabion Box, Gabion Retaining Wall Description Welded Mesh Gabion Box is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc. ...

Product Details

Highlight:

welded wire gabion baskets

,

retaining wall gabion cages

Material: Galvanized Iron Wire
Size: 2*1*0.5 /2*1*1 M, Etc
Mesh Size: 50X50 Mm,50 X100 Mm
Wire Gauge: 4.0, 5.0 Mm
Application: Fence Mesh, Retaining Wall
Customization: Yes
Product Description

1x1x0.5m 2x1x1m Welded Mesh Gabion Box, Gabion Retaining Wall





Description



Welded Mesh Gabion Box is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.

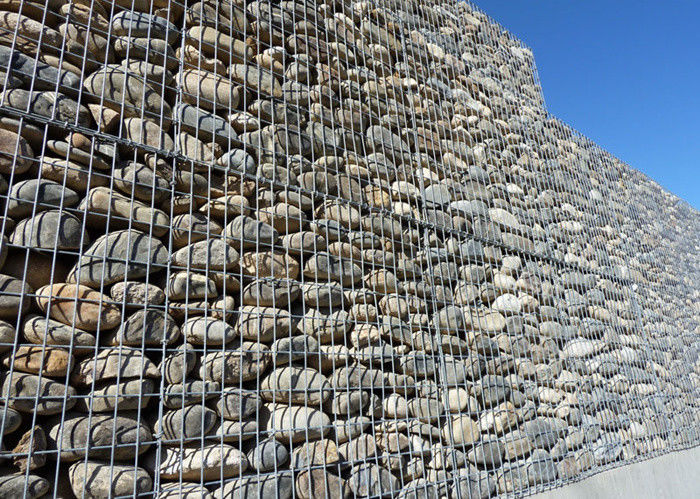

Welded mesh gabion box is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Welded Gabion box is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.



1. MOQ:100 sets

2. Type:Weld mesh

3. Wire dia: 2.4-3.5mm

4. Material:galvanized steel wire

5. Surface Treatment: Hot dip galvanized

6. Usage: Used for garden,road,playground,park etc

7. Packaging Details: Packed with plastic film then on the pallets and then in wooden box

8. Mesh size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.

9. Box size: 0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.Custom orders avaliable.


Feature

1. Economic. Just fill the stone into the gabions and seal it.

2. Simple installation. No special technology needed;

3. Weather proof under natural destroys corrosion resistant;

4. No collapse even under big scope of deforming;

5. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment;

6. Good permeation can prevent the damage by hydrostatic;

7. Less transport freight. It can be folded together for transport and further installation.



How to install Welded Gabion Box?



1) Foundation preparation
The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.

2) Assembly
Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.

3) Placement
Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.


4) Filling
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.



Application



1. Control and guide of water or flood 2. Preventing of rock breaking
3. Rock fall protection 4. Water and soil protection
5. Bridge protection 6.Strengthening structure of soil
7. Protection engineering of seaside area 8. Port project
9. Keep off dust wall 10.roadway protection
